AUTOSAR RTE5 실습#

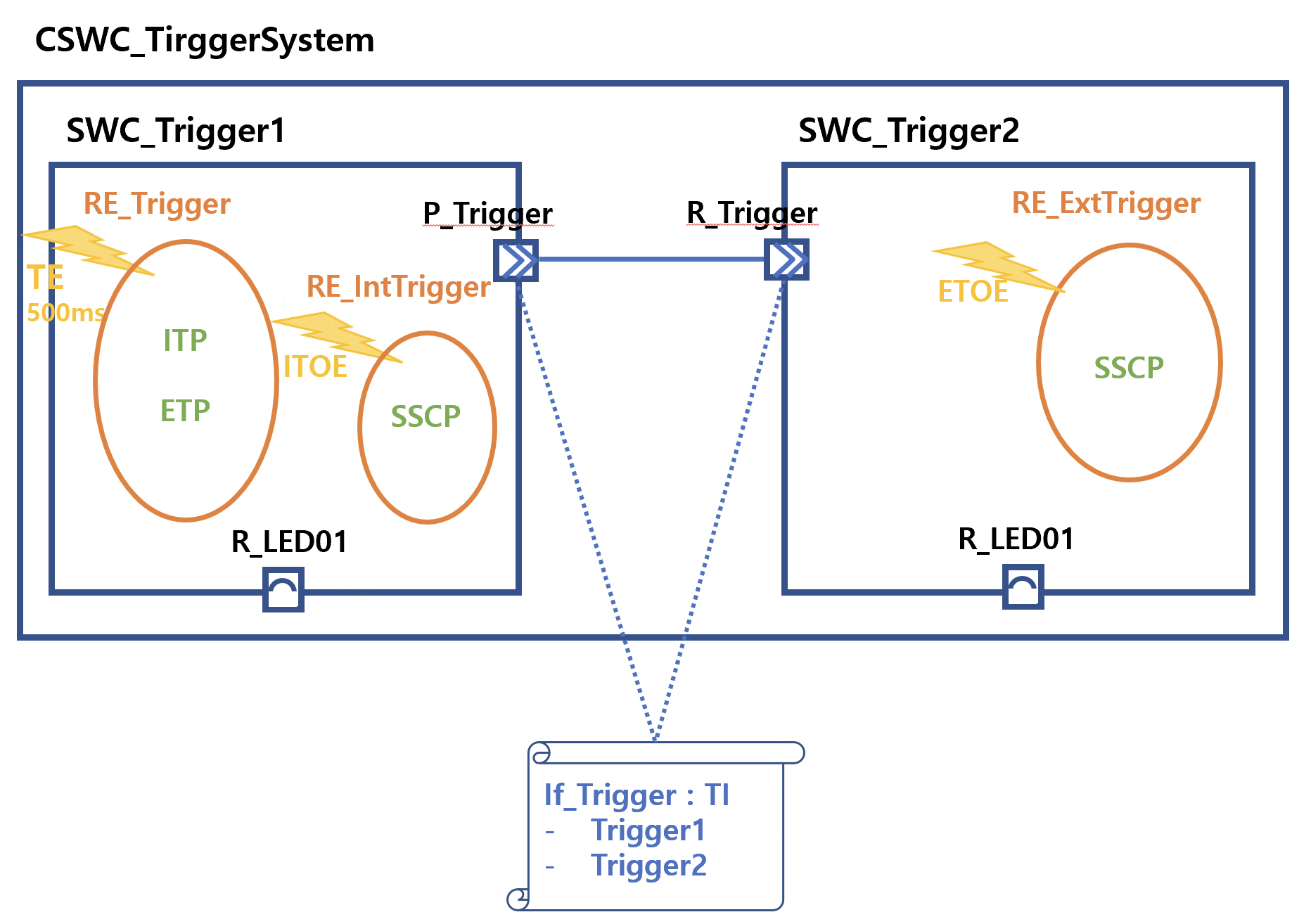

아래 그림은 RTE5 실습의 설계도 입니다.#

그림

0. 목차#

  1. Project 생성
  2. VFB level
  3. RTE level
  4. C coding
  5. ECU Mapping
  6. ECU Extract
  7. ECU Configuration
  8. Generate & Build

1. Project 생성#

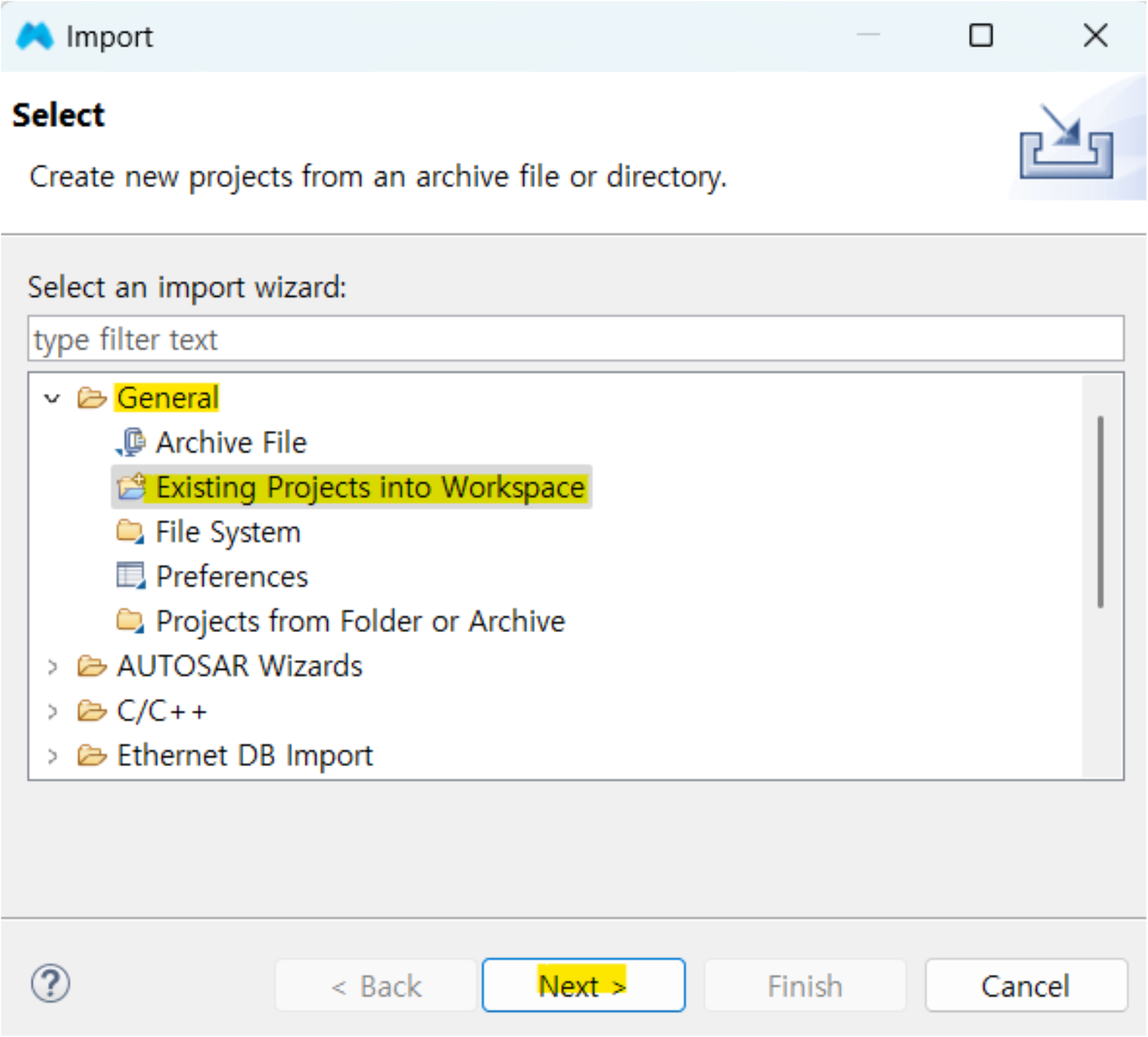

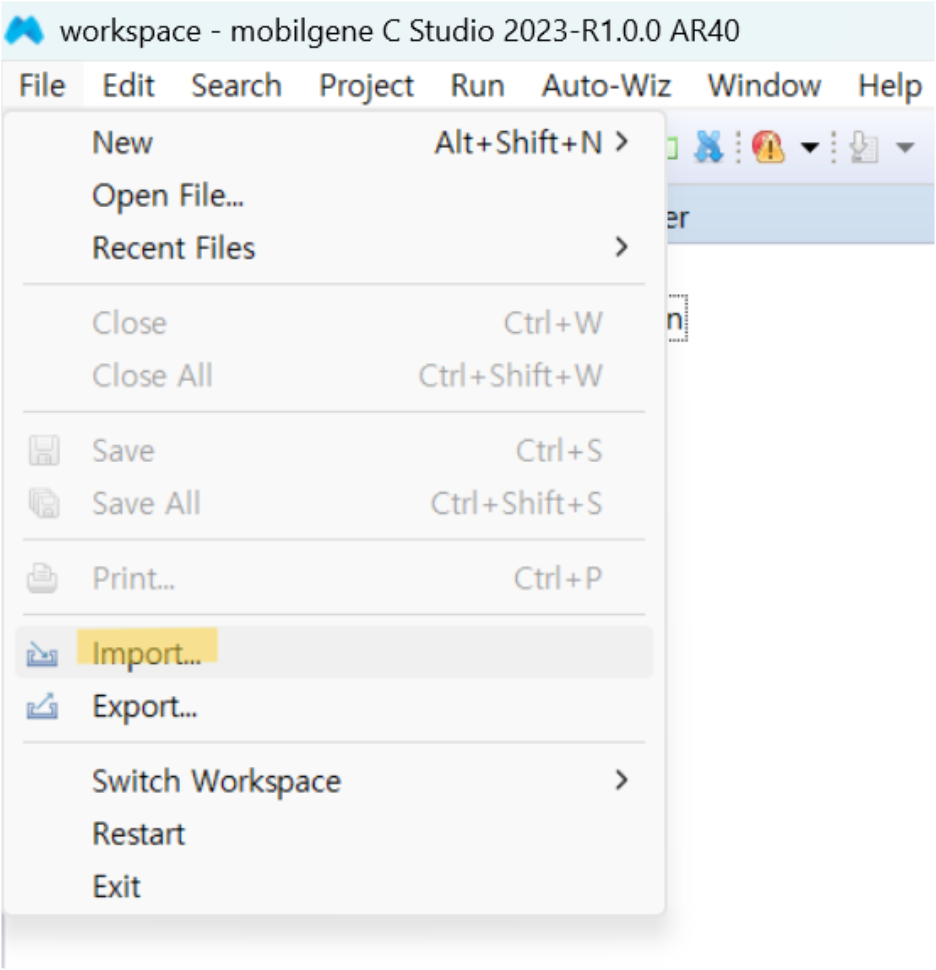

  • File → Import → General → Existing Projects into Workspace → Next 선택
    1-1 1-2

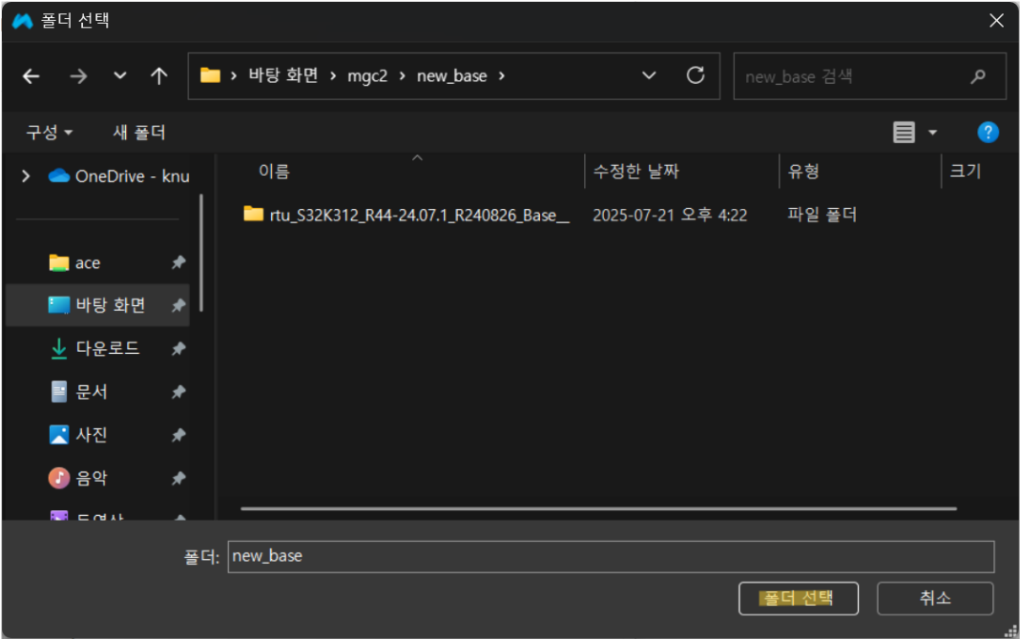

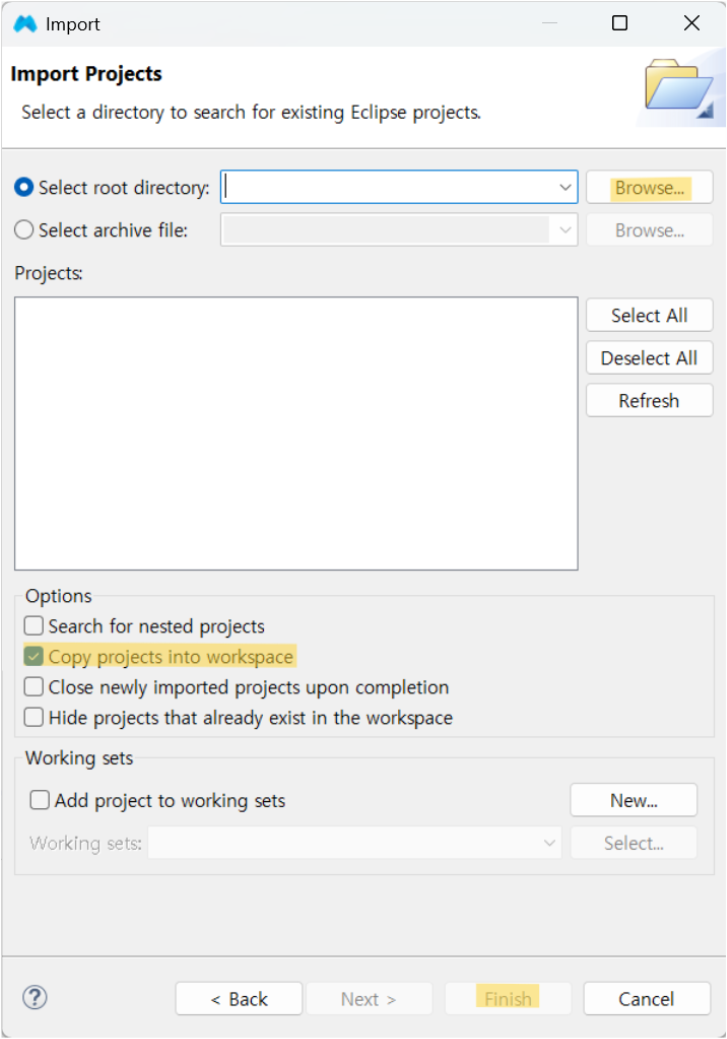

  • Base Project 선택 → Copy projects into workspace 체크 → Finish 클릭
    1-3 1-4

    Copy projects into workspace는 원본 프로젝트 보존하고 workspace에서 실습하기 위함

2. VFB level#

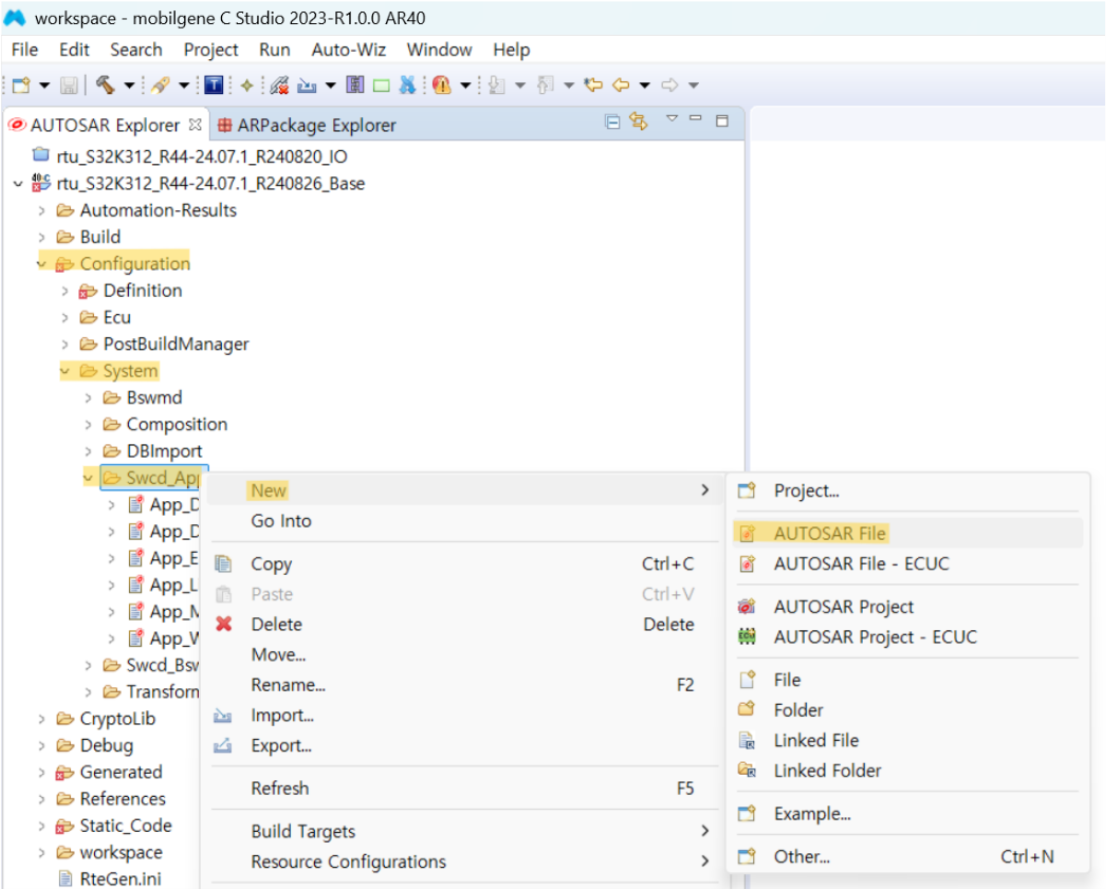

  • Configuration → System → Swcd_App 우클릭 → New → AUTOSAR File 선택
    2-1

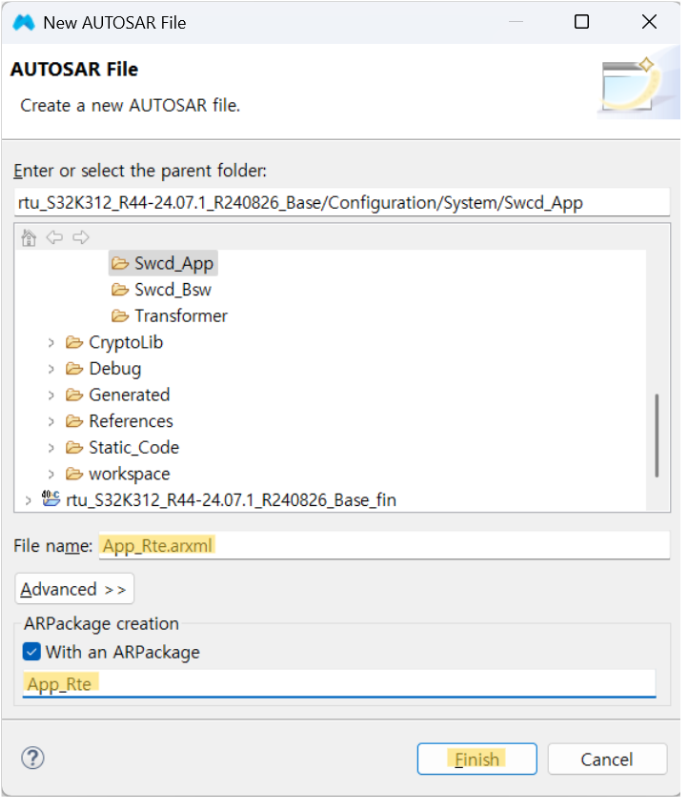

  • Package name과 File name 입력 → Finish 클릭
    2-2

  • 생성한 AUTOSAR 파일 열기 → 화살표 클릭

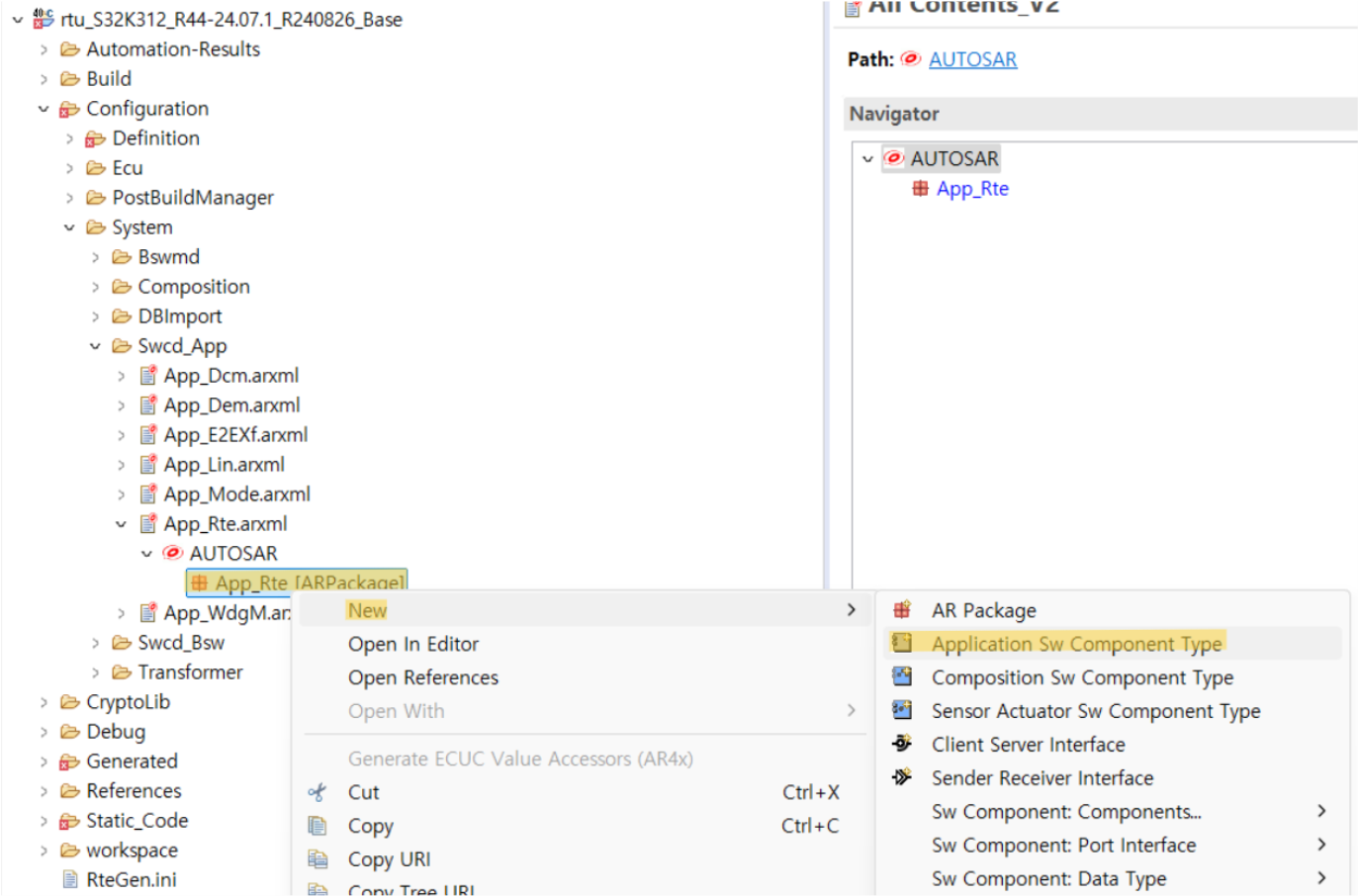

  • App_Rte 우클릭 → New → Application Sw Component Type 선택
    2-3

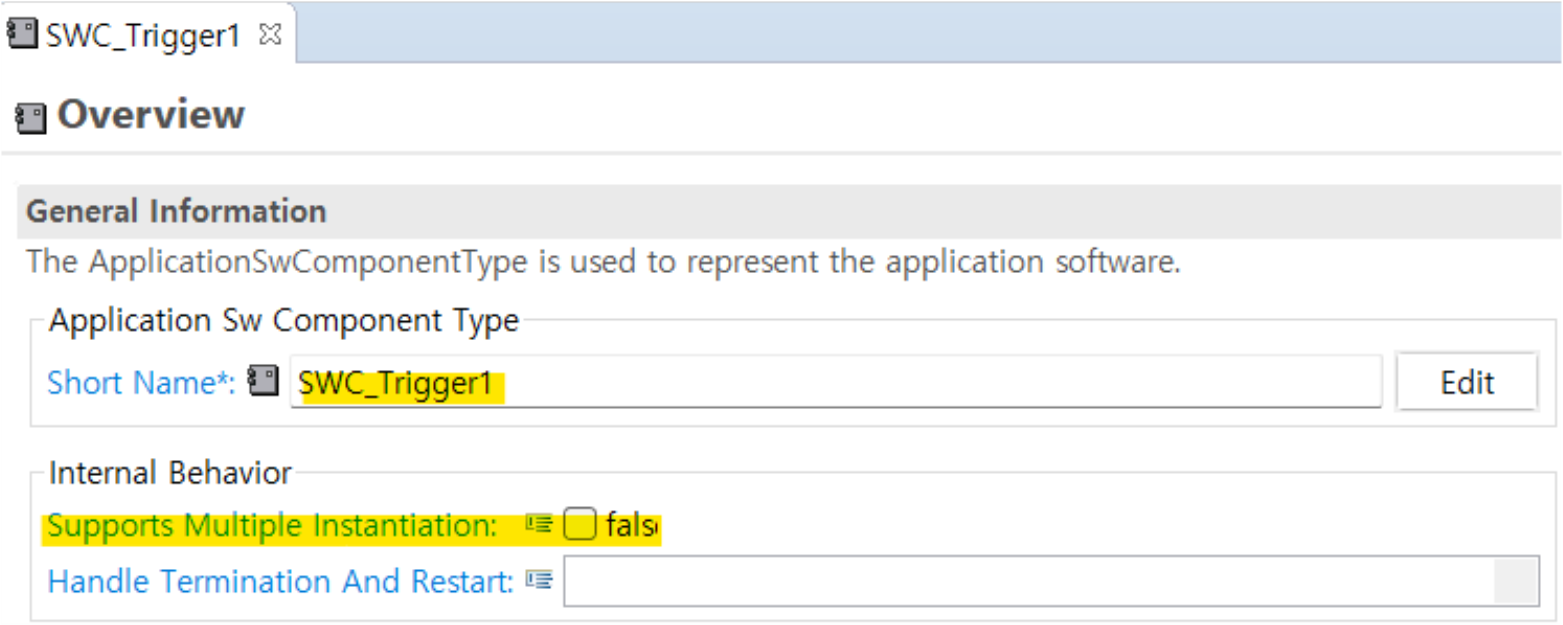

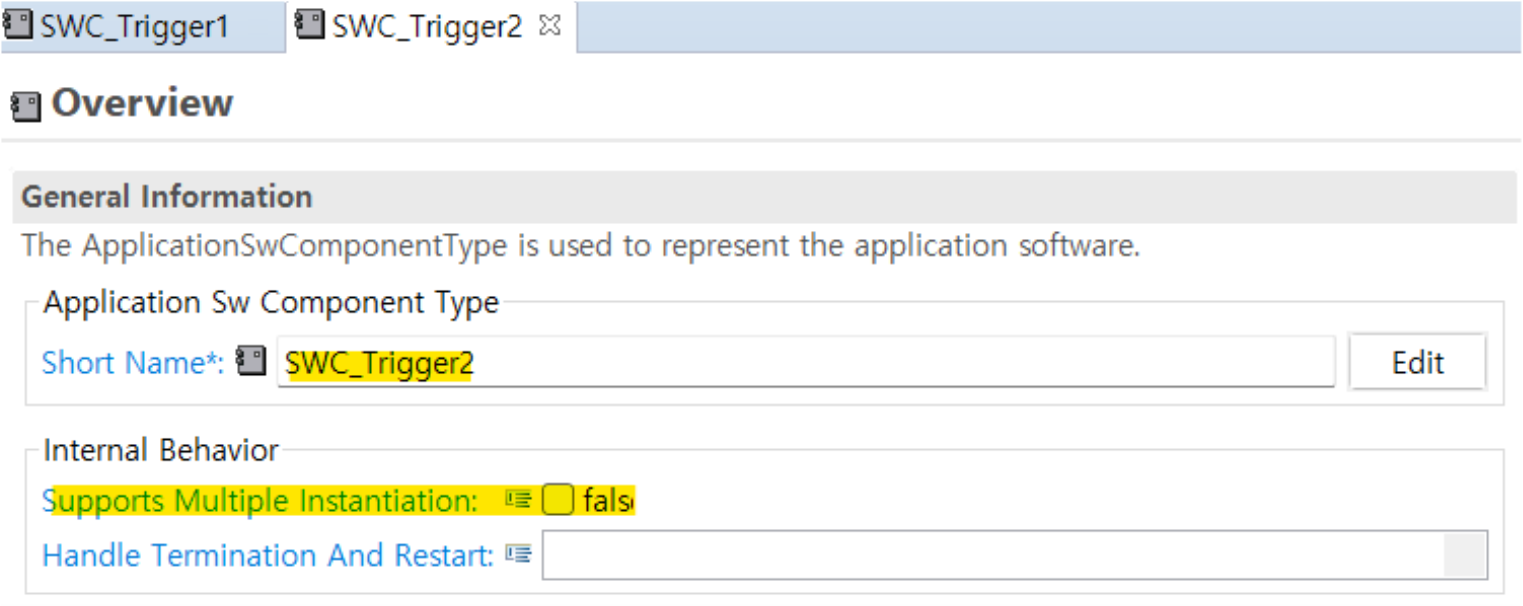

  • SWC 이름 설정: SWC_Trigger1, SWC_Trigger2 생성
    Supports Multiple Instantiation : false
    2-4 2-5

Interface 생성#

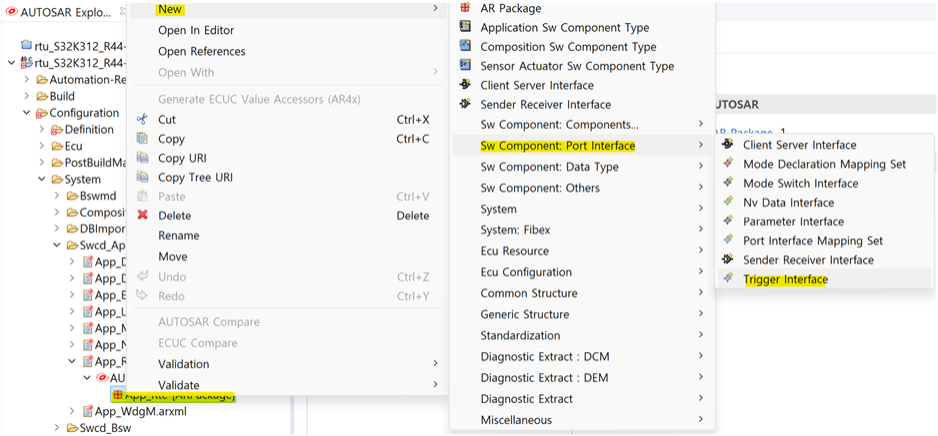

  • App_Rte[ARPACKAGE] 우클릭 → New → Sw Component: Port Interface
    → Trigger Interface선택
    2-6

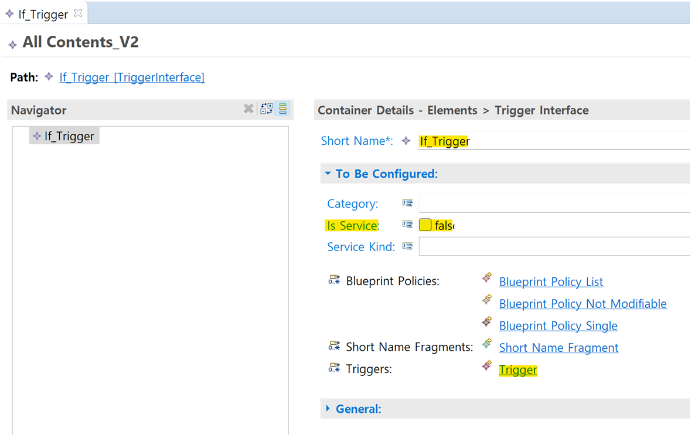

  • Short Name: If_Trigger → Is Service: false

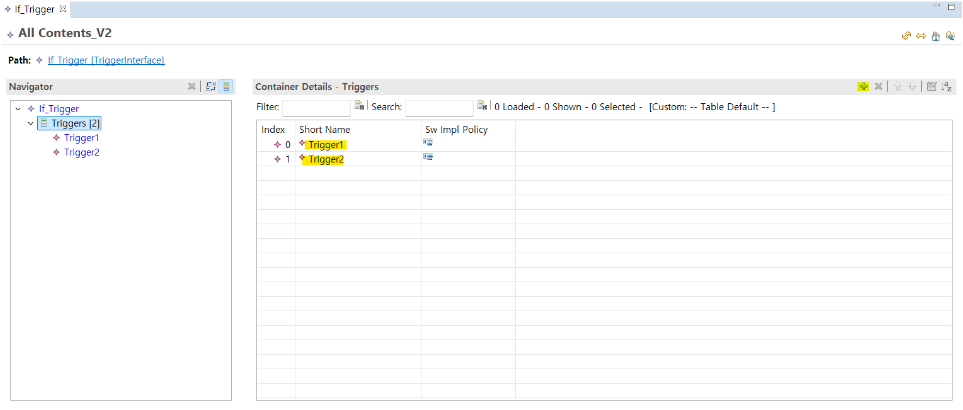

  • Trigger 생성 : Trigger 클릭 → + 클릭 → Trigger1, Trigger2 생성 2-7
    2-8

SWC_Trigger1 설정#

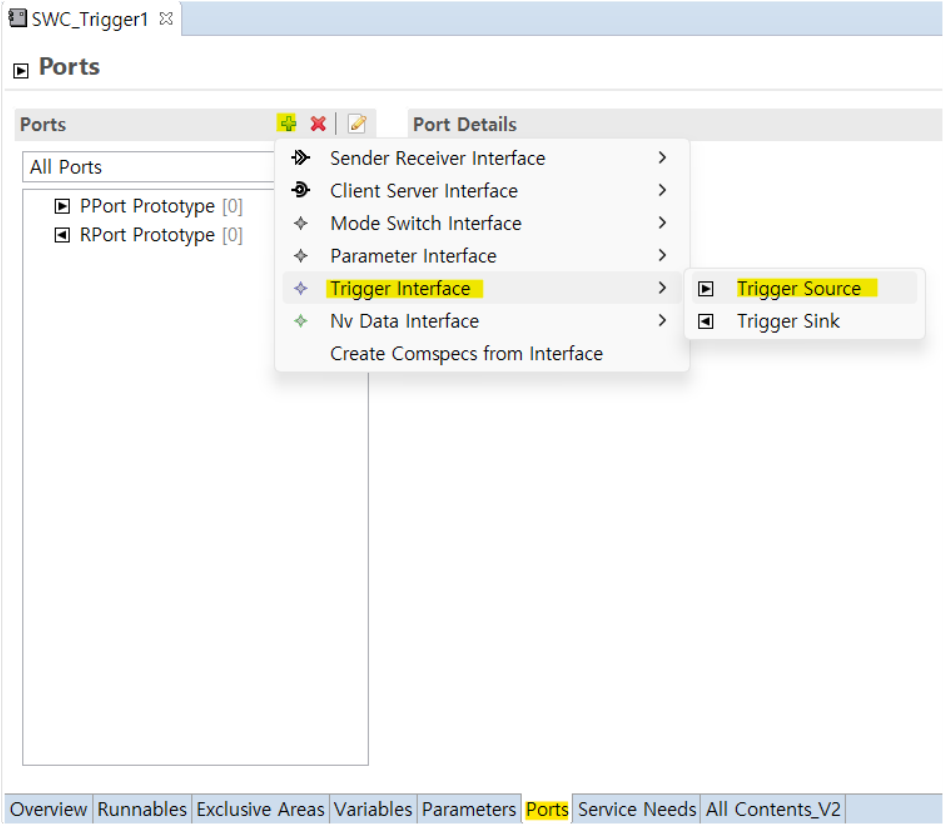

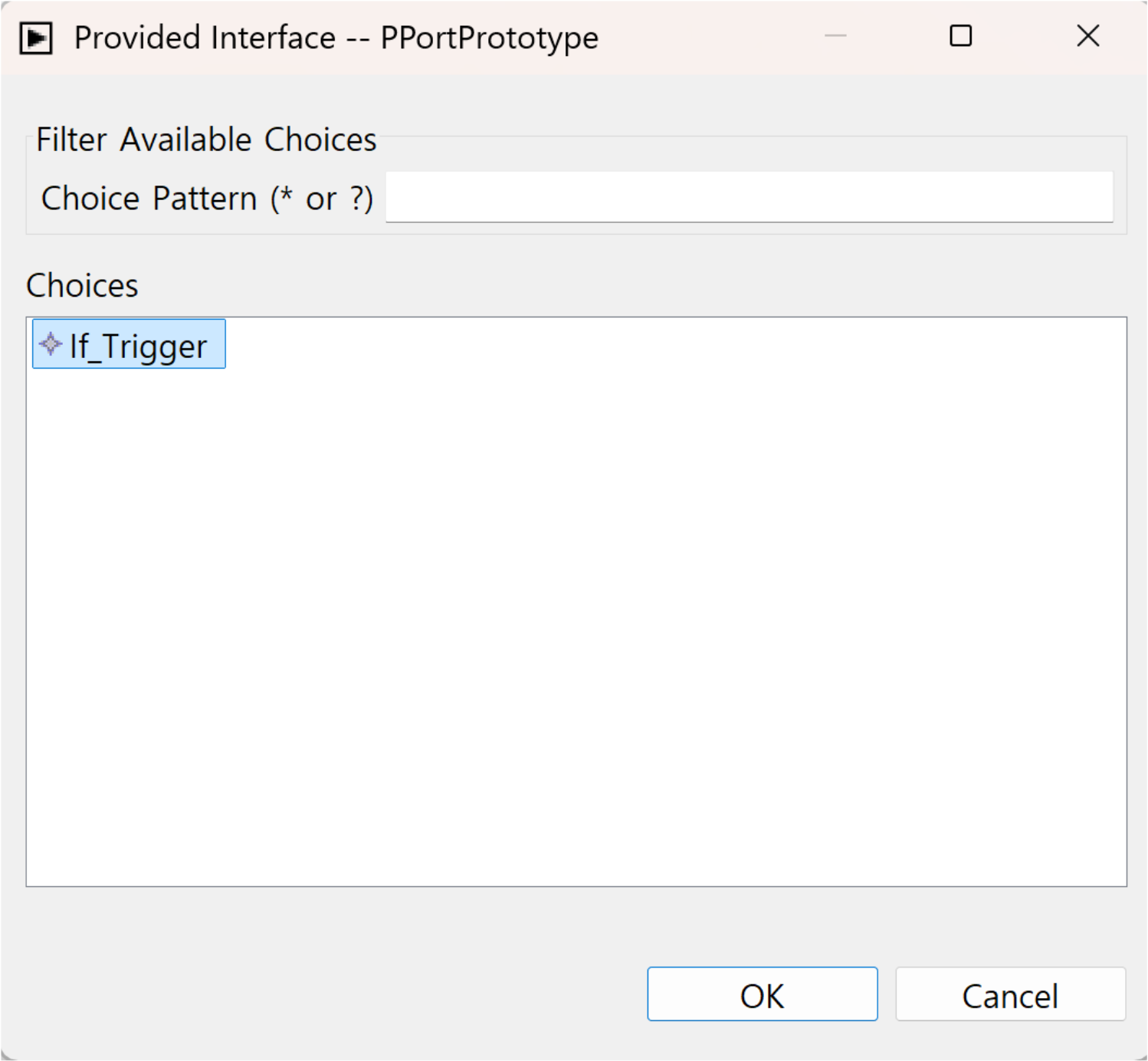

  • Ports → + 클릭 → Trigger Interface → Trigger Source → If_Trigger 선택
    2-9 2-10

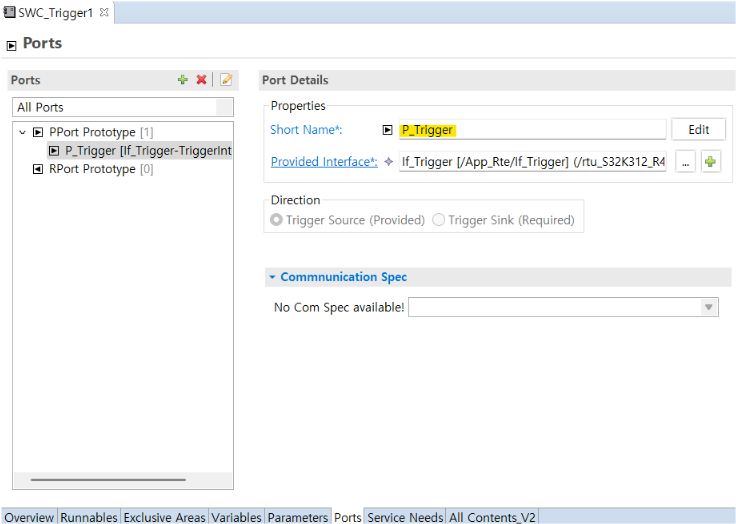

  • Short Name: P_Trigger
    2-11

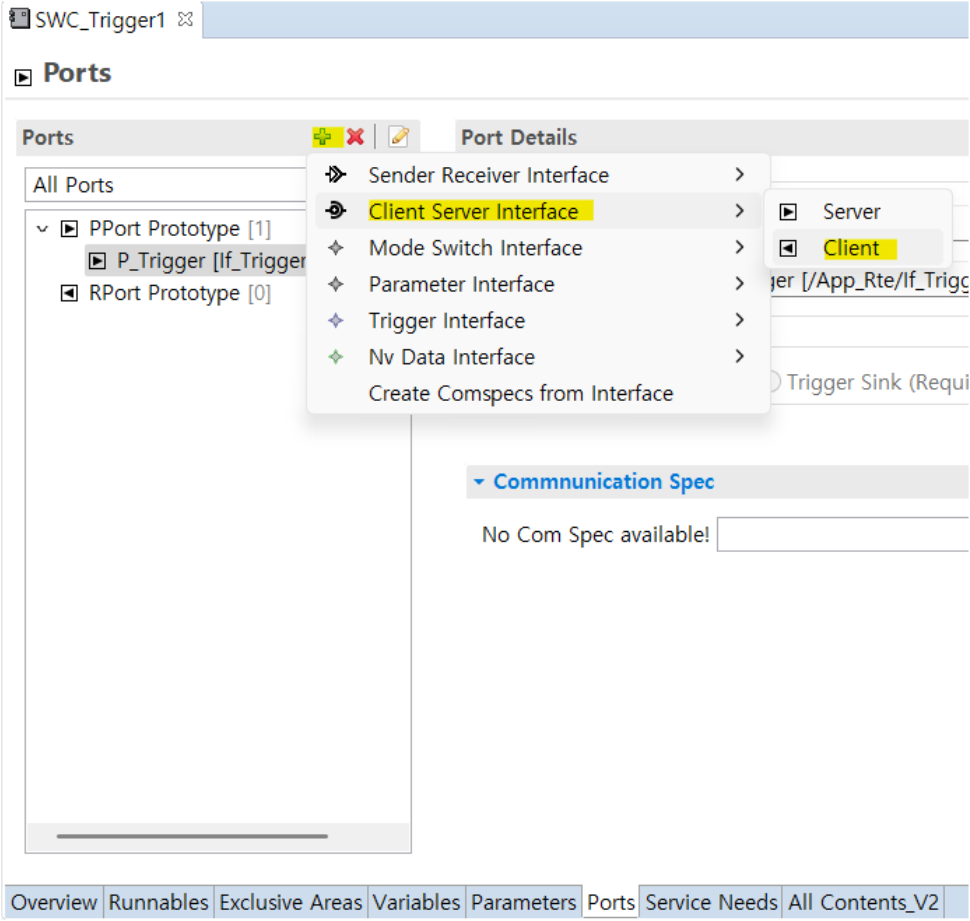

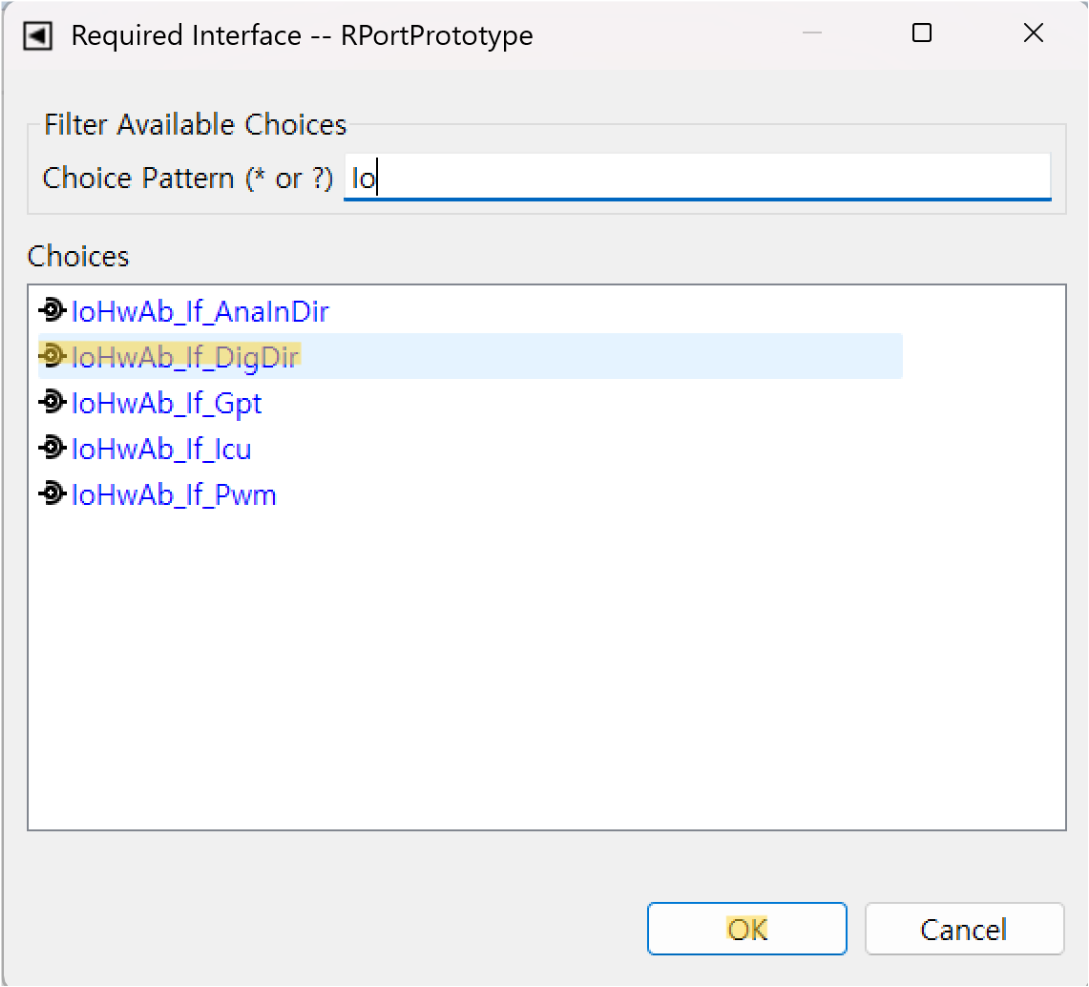

  • + 클릭 → Client Server Interface → Client → IoHwAb_If_DigDir 선택
    2-12 2-13

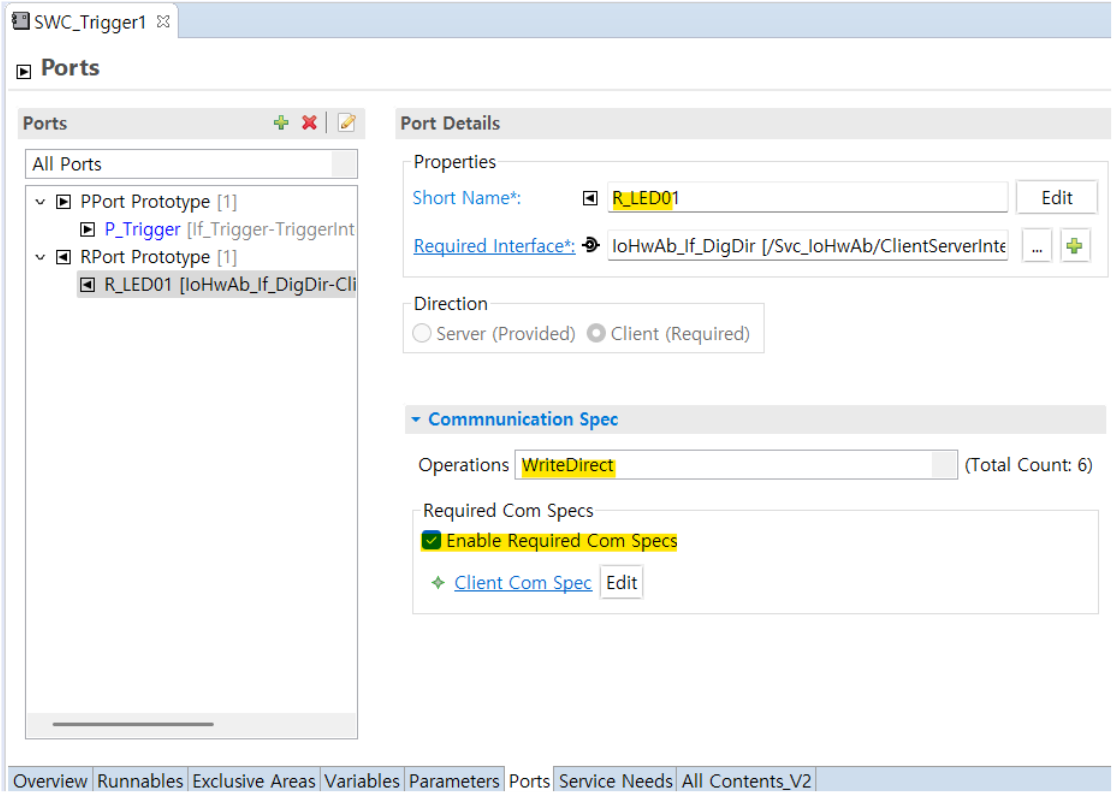

  • Short Name: R_LED01 → Enable Provided Com Specs 체크 → WriteDirect 선택
    2-14

SWC_Trigger2 설정#

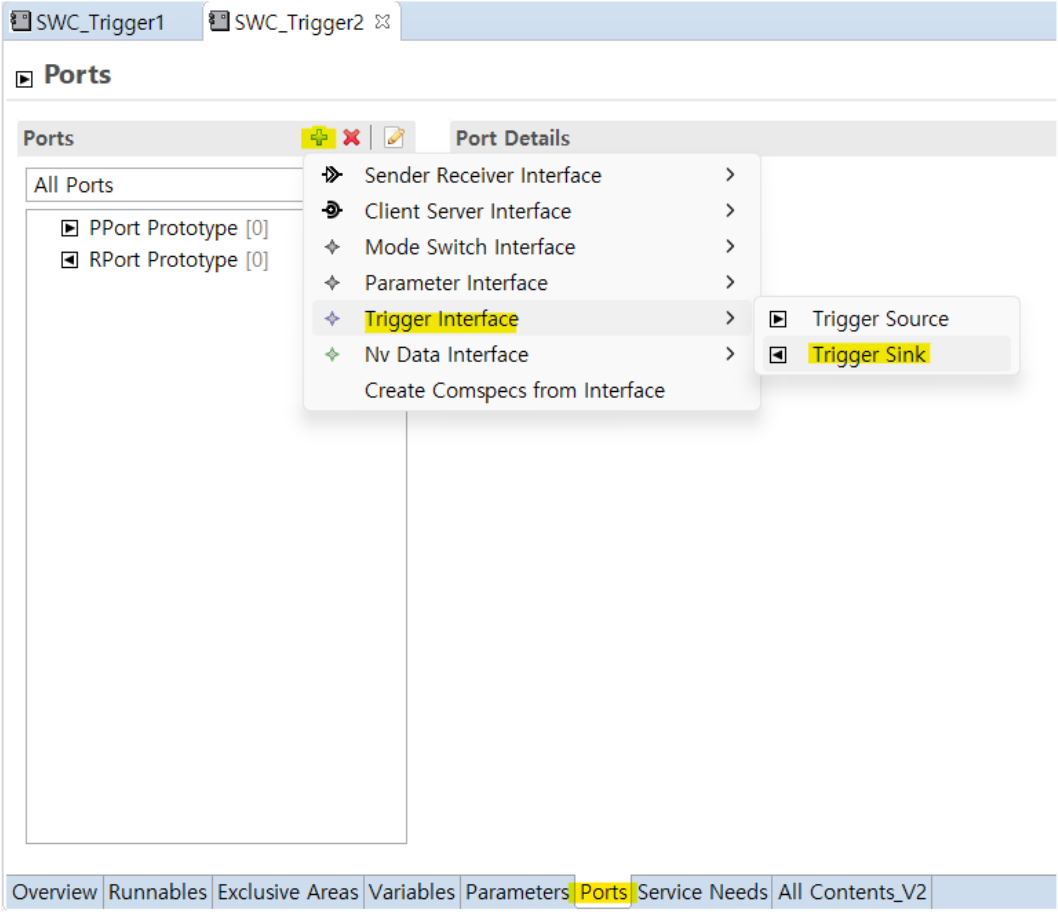

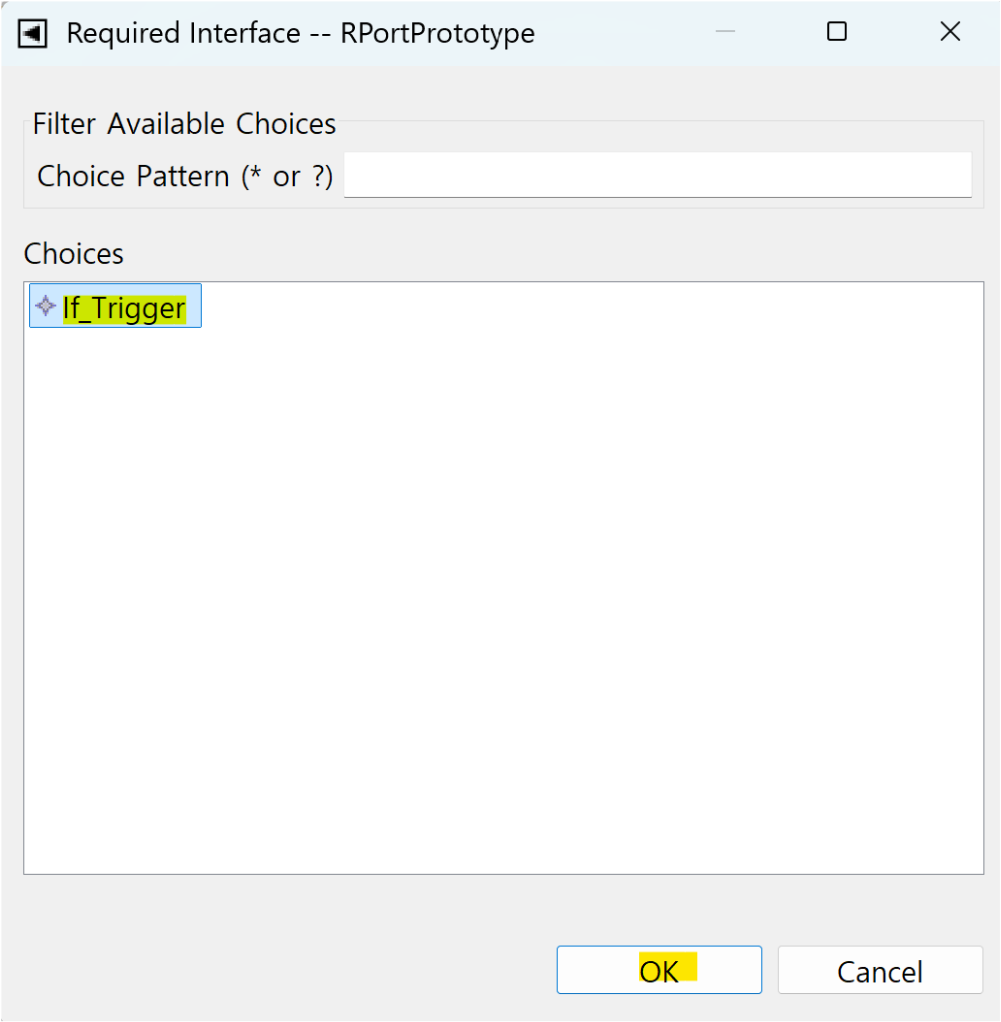

  • Ports → + 클릭 → Trigger Interface → Trigger Sink → If_Trigger 선택
    2-15 2-16

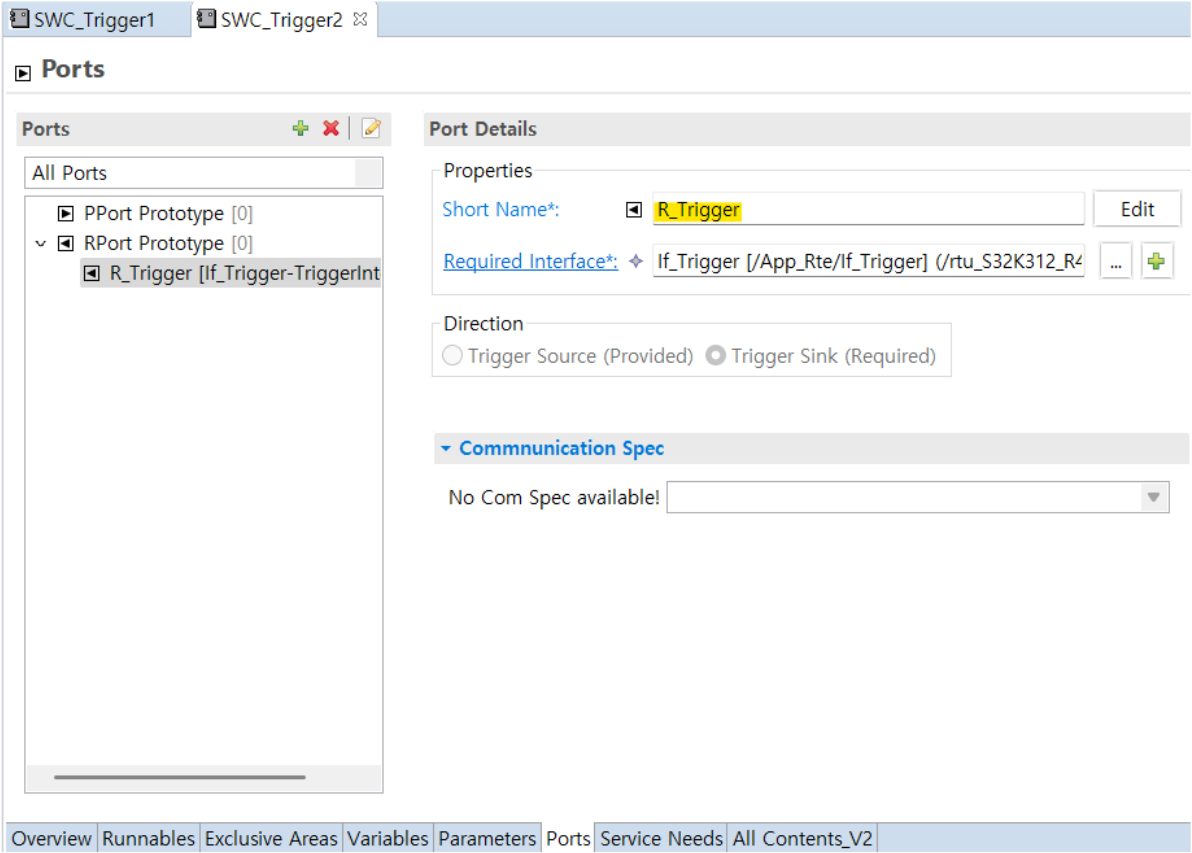

  • Short Name: R_Trigger 2-17

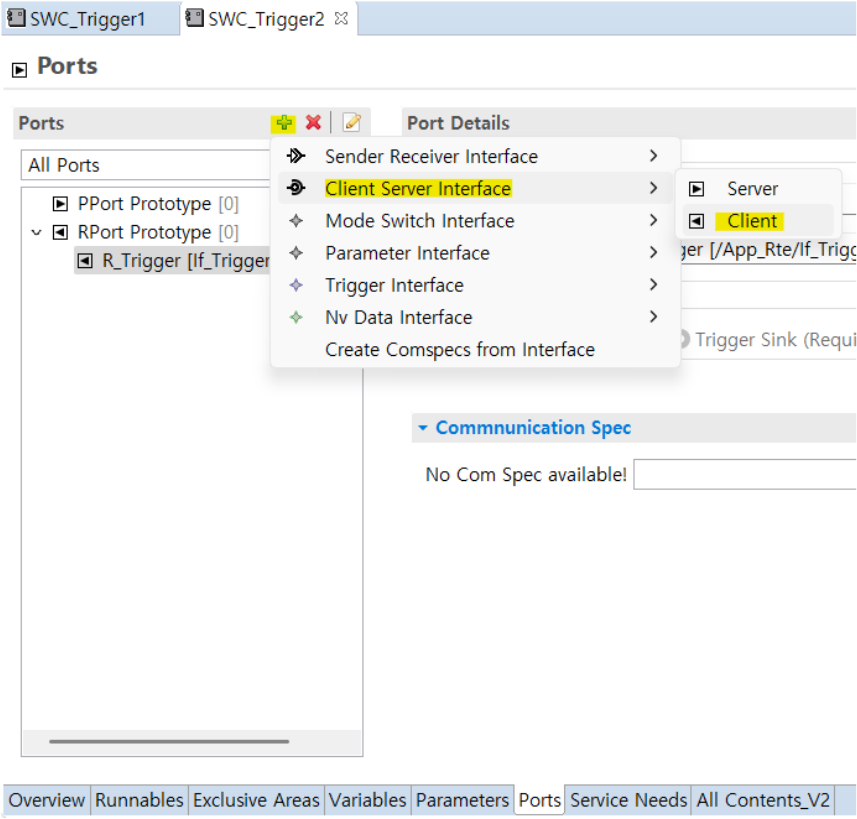

  • + 클릭 → Client Server Interface → Client → IoHwAb_If_DigDir 선택
    2-18 2-19

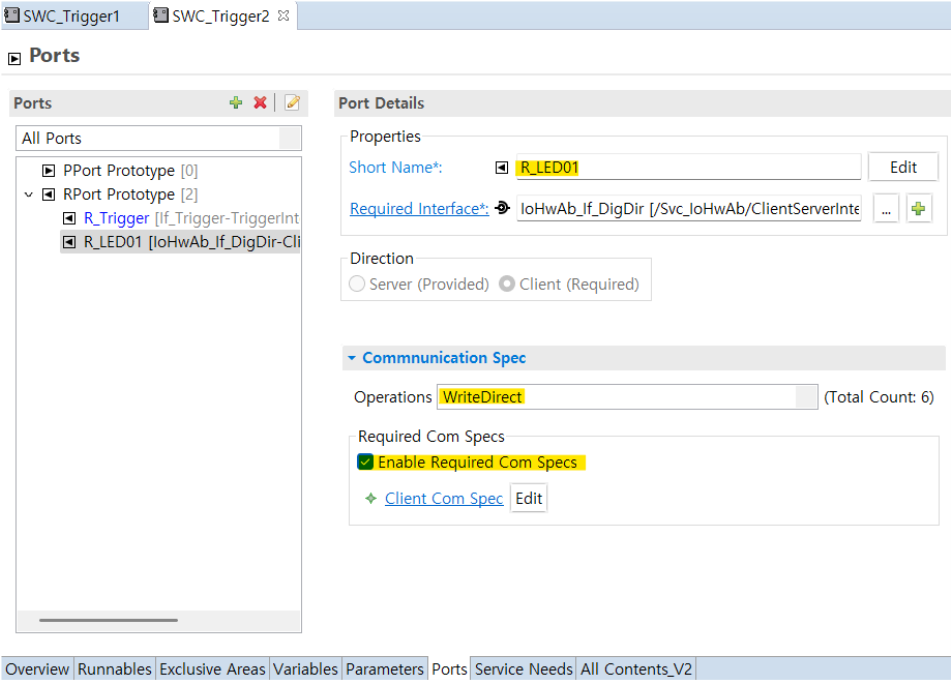

  • Short Name: R_LED01 → Enable Provided Com Specs 체크 → WriteDirect 선택
    2-20

CSWC 생성 및 연결#

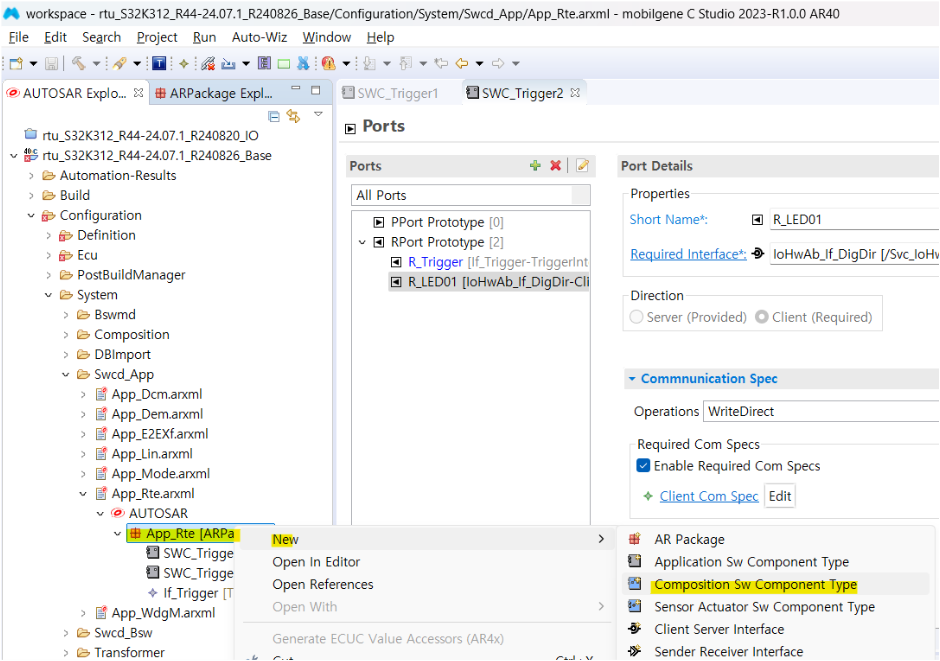

  • App_Rte[ARPackage] 우클릭 → New → Composition Sw Component Type 선택 2-21

  • Short Name: CSWC_TriggerSystem
    2-22

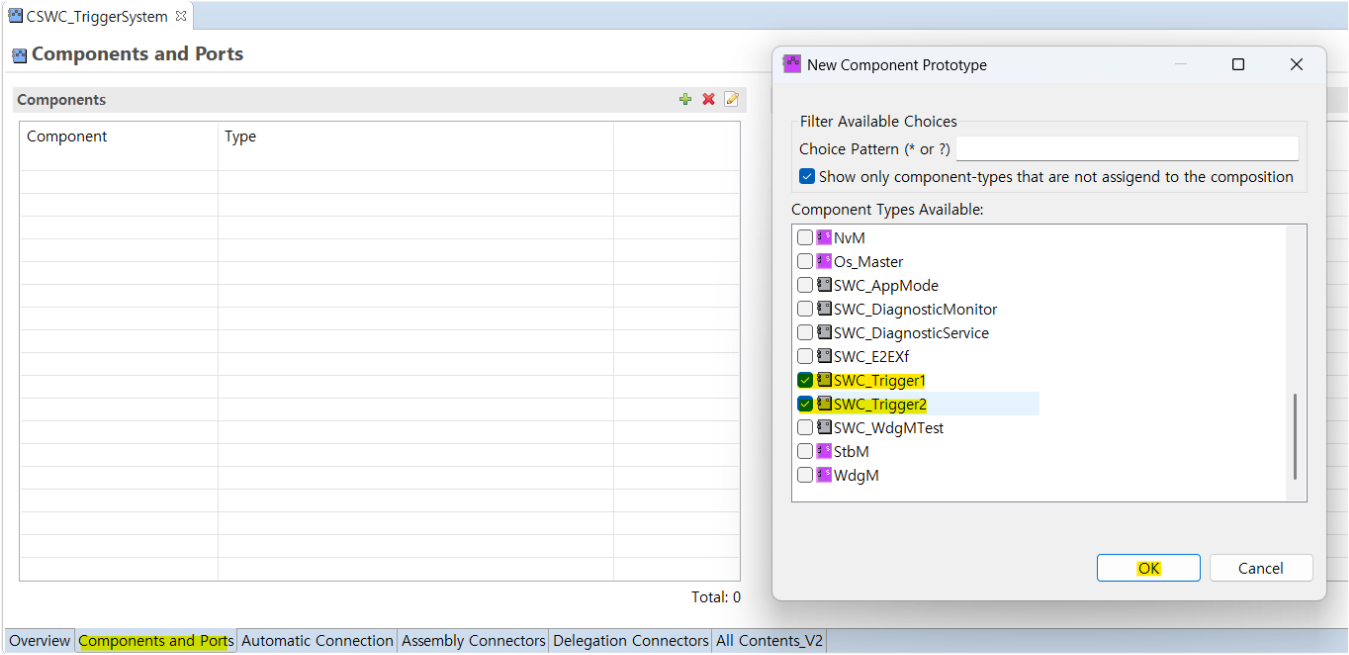

  • Components and Ports → + 클릭 → SWC_Trigger1, SWC_Trigger2 추가
    2-23

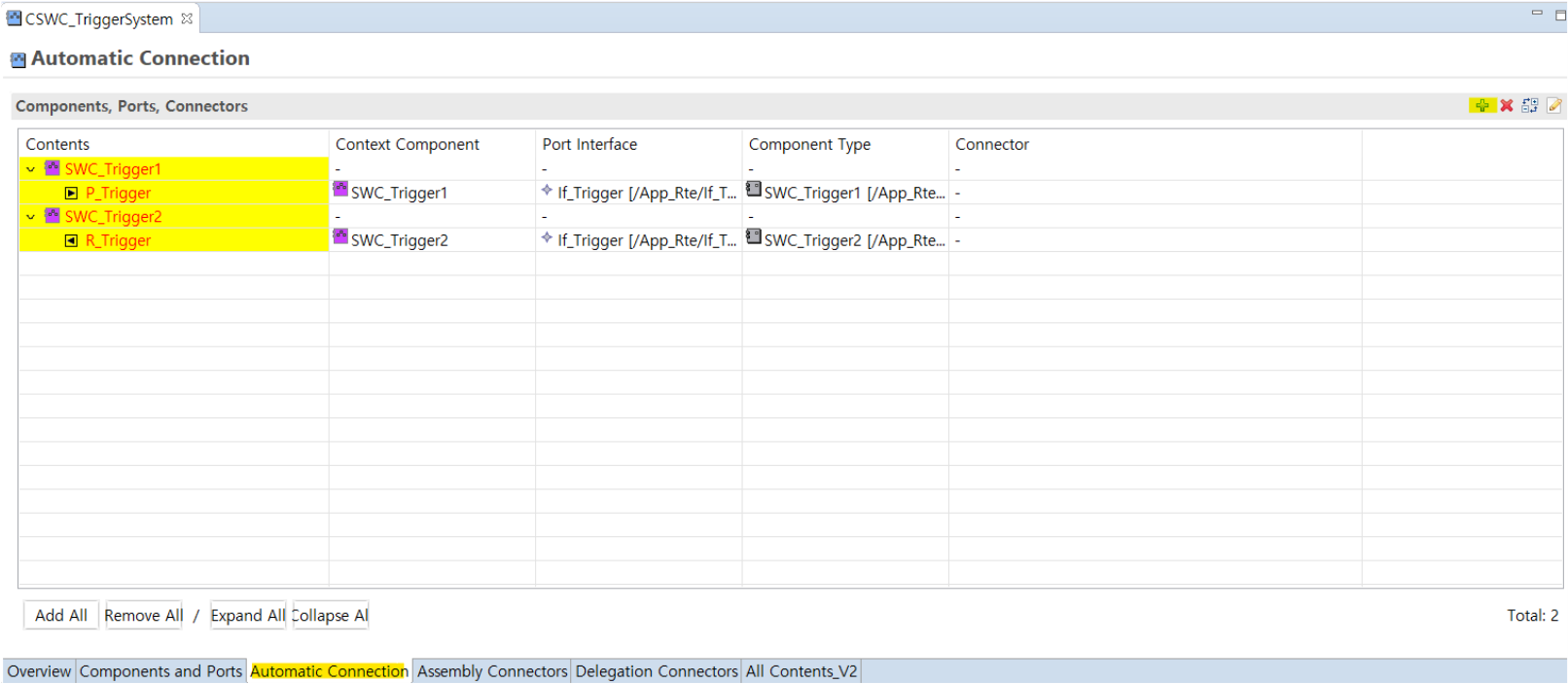

  • Automatic Connection → + 클릭
    2-24

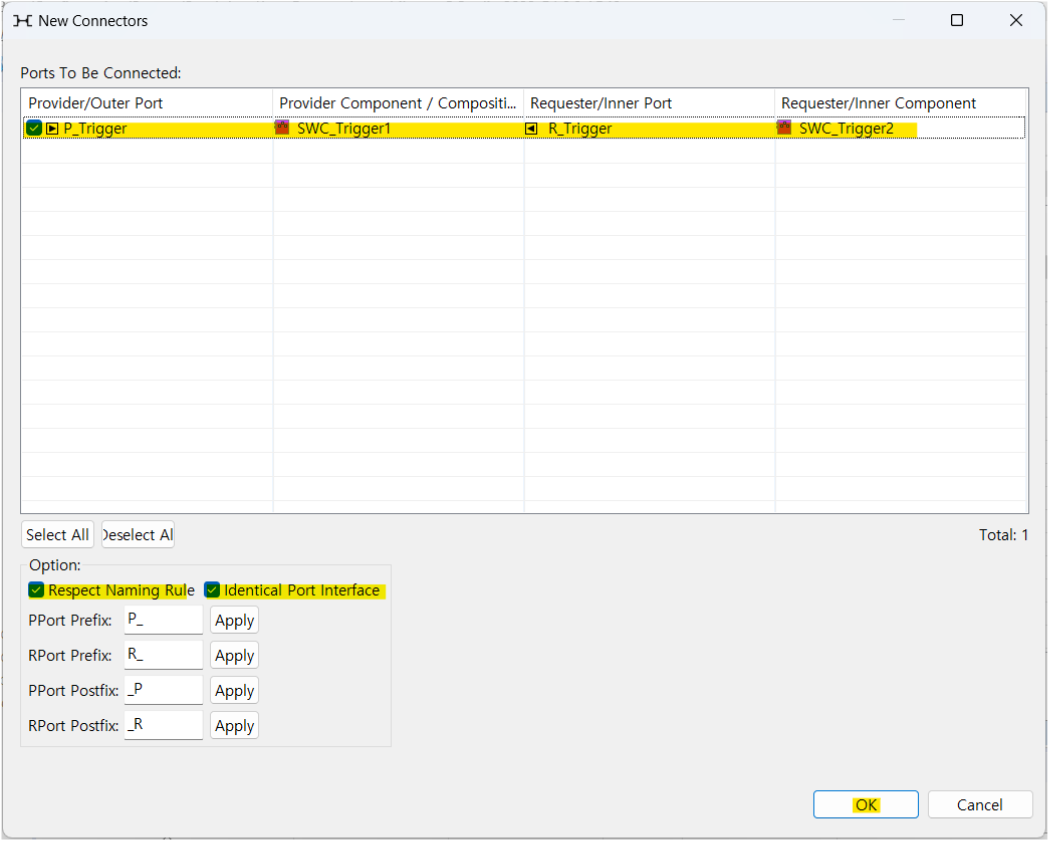

  • Respect Naming Rule, Identical Port Interface 체크 상태에서 자동 연결 확인
    2-25

3. RTE level#

Runnable 설정: SWC_Trigger1#

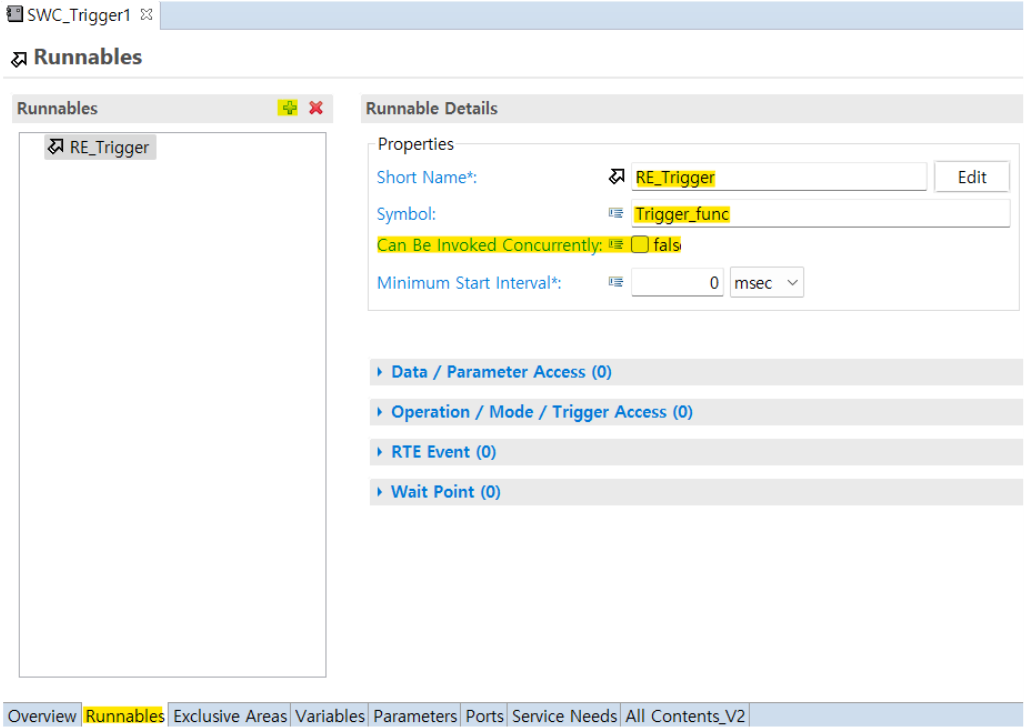

  • Runnables → + 클릭 → Short Name: RE_Trigger → Symbol: Trigger_func
    → Can Be Invoked Concurrently: false
    3-1

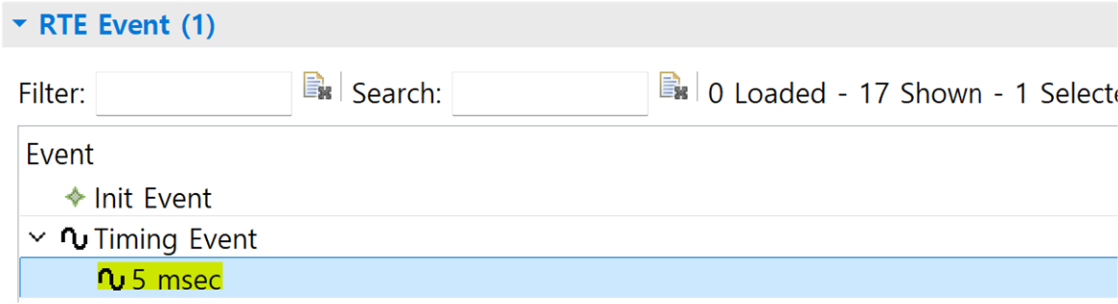

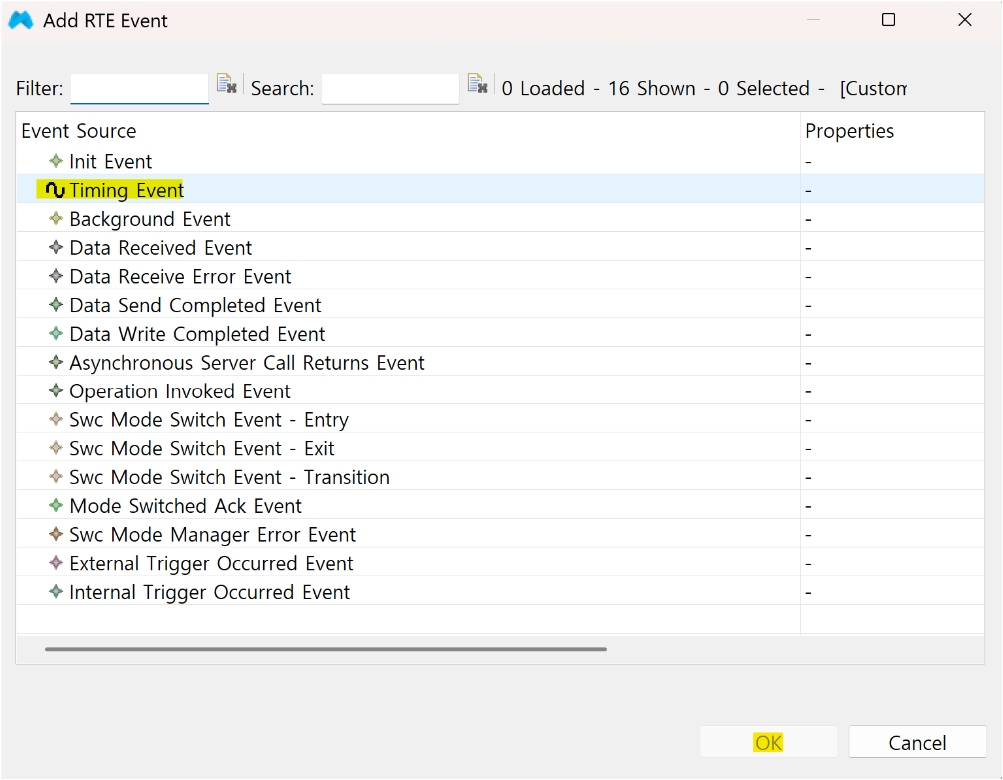

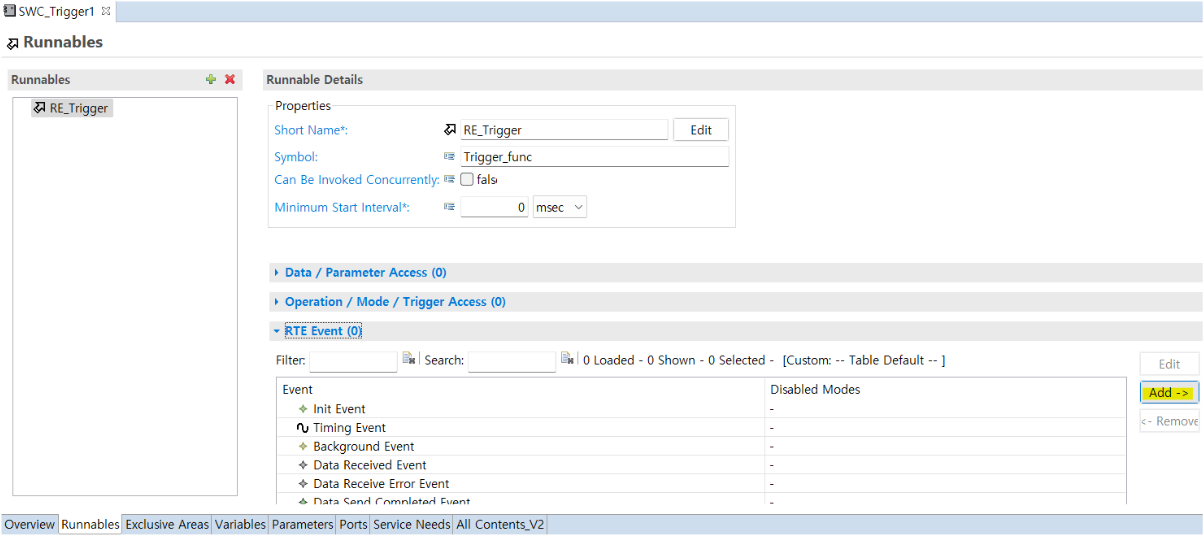

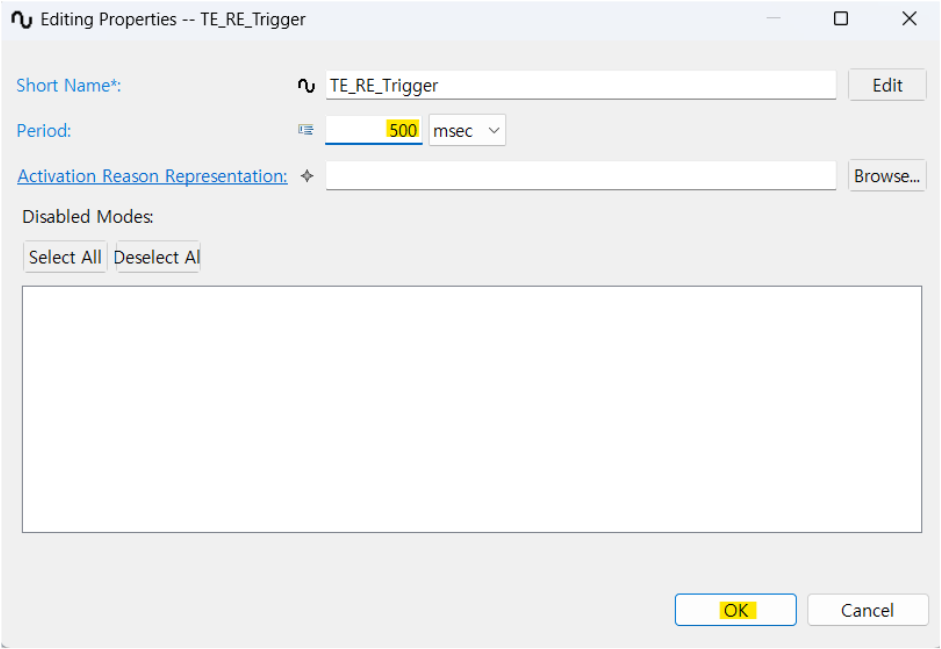

  • RTE Event → Add → Timing Event 선택 → 5 msec 더블 클릭 → 주기: 500ms
    3-2
    3-3
    3-4 3-5

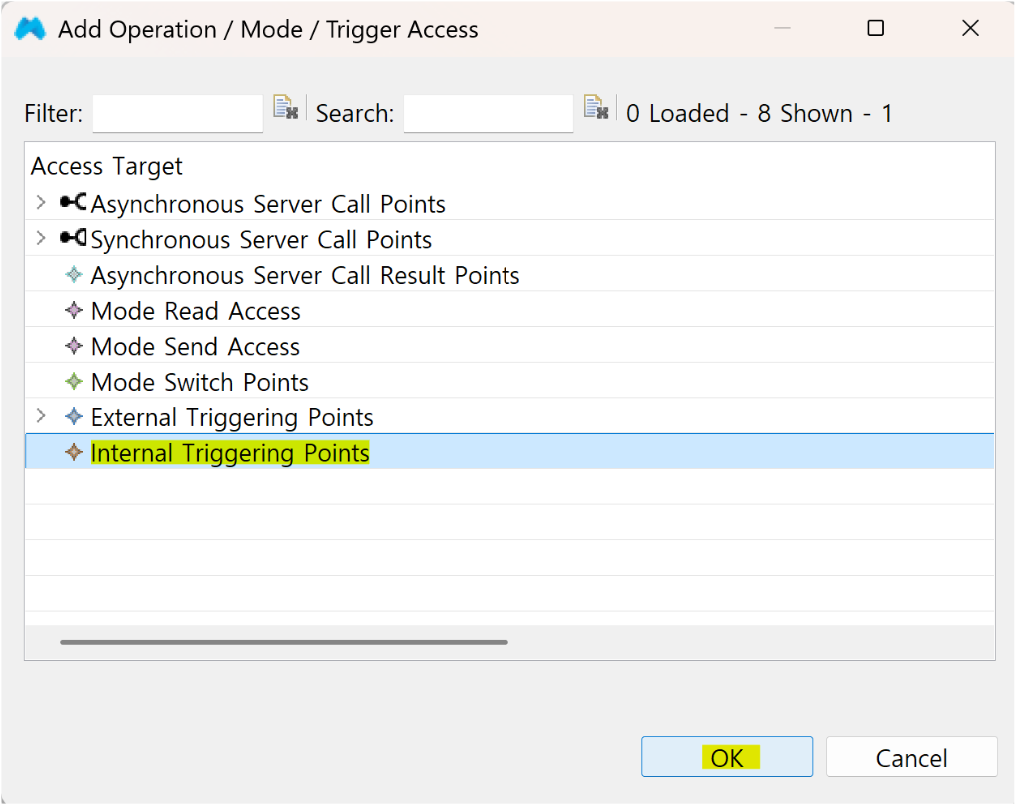

  • Operation/Mode/Trigger Access → Add → Internal Triggering Points 선택 3-6 3-7

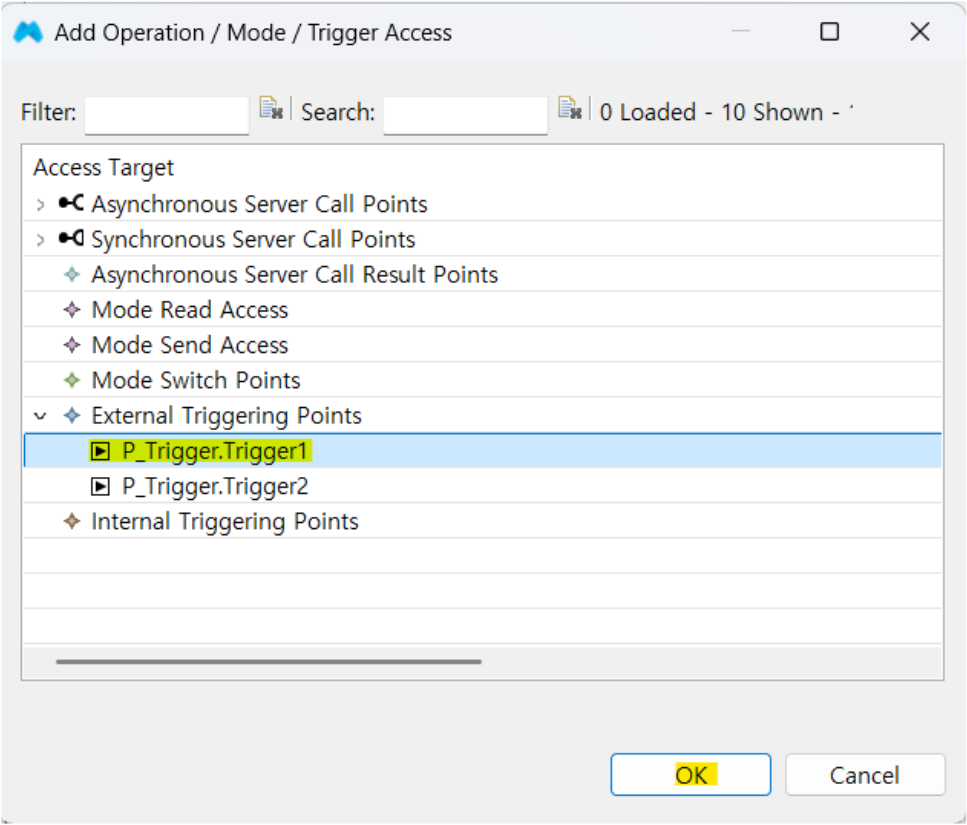

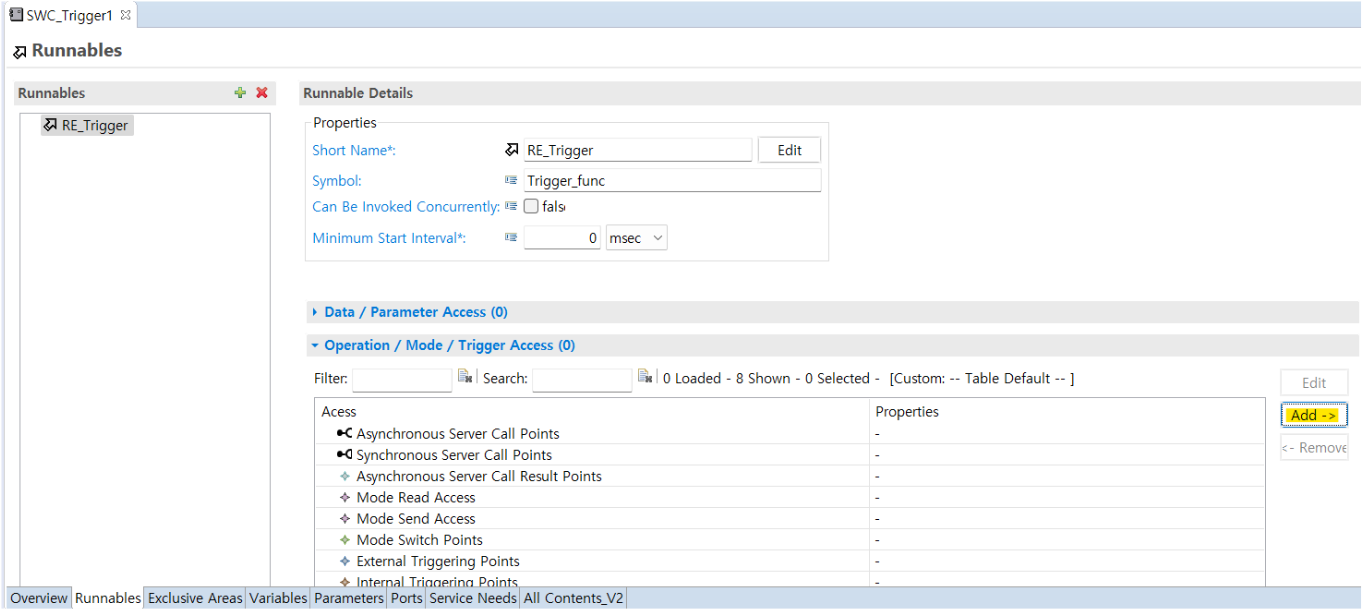

  • Operation/Mode/Trigger Access → Add → External Triggering Points
    → P_Trigger.Trigger1 선택
    3-8
    3-9

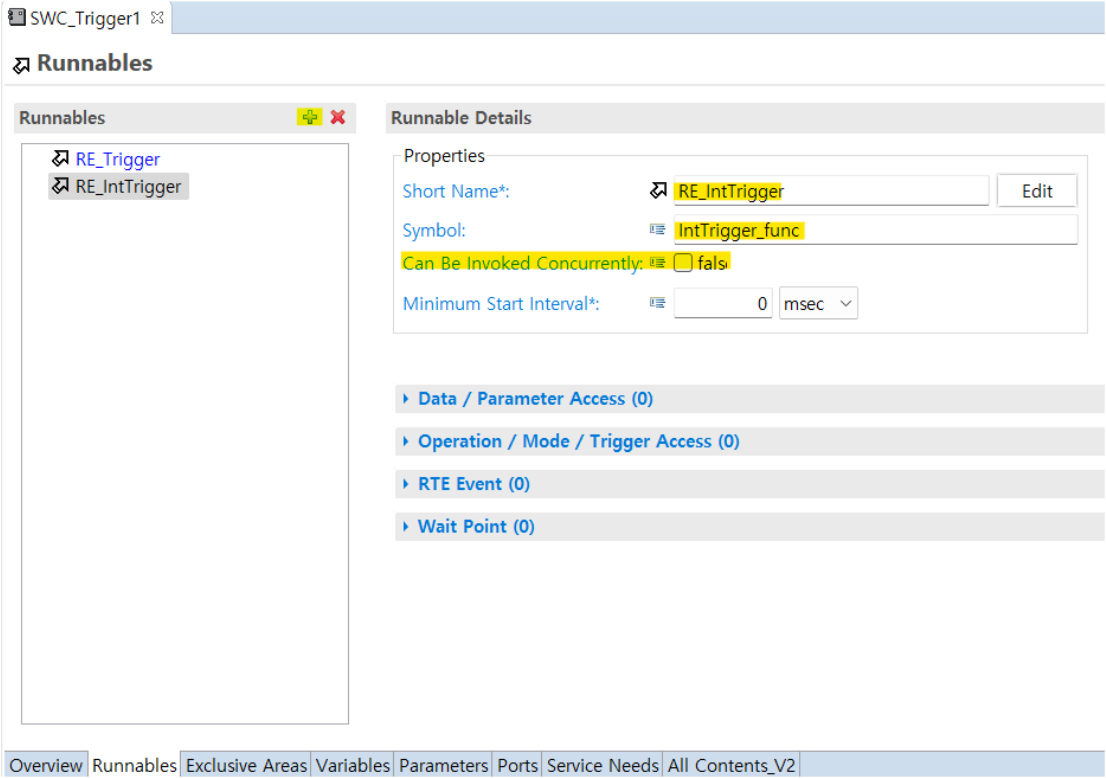

  • Runnables → + 클릭 → Short Name: RE_IntTrigger → Symbol: IntTrigger_func
    → Can Be Invoked Concurrently: false
    3-10

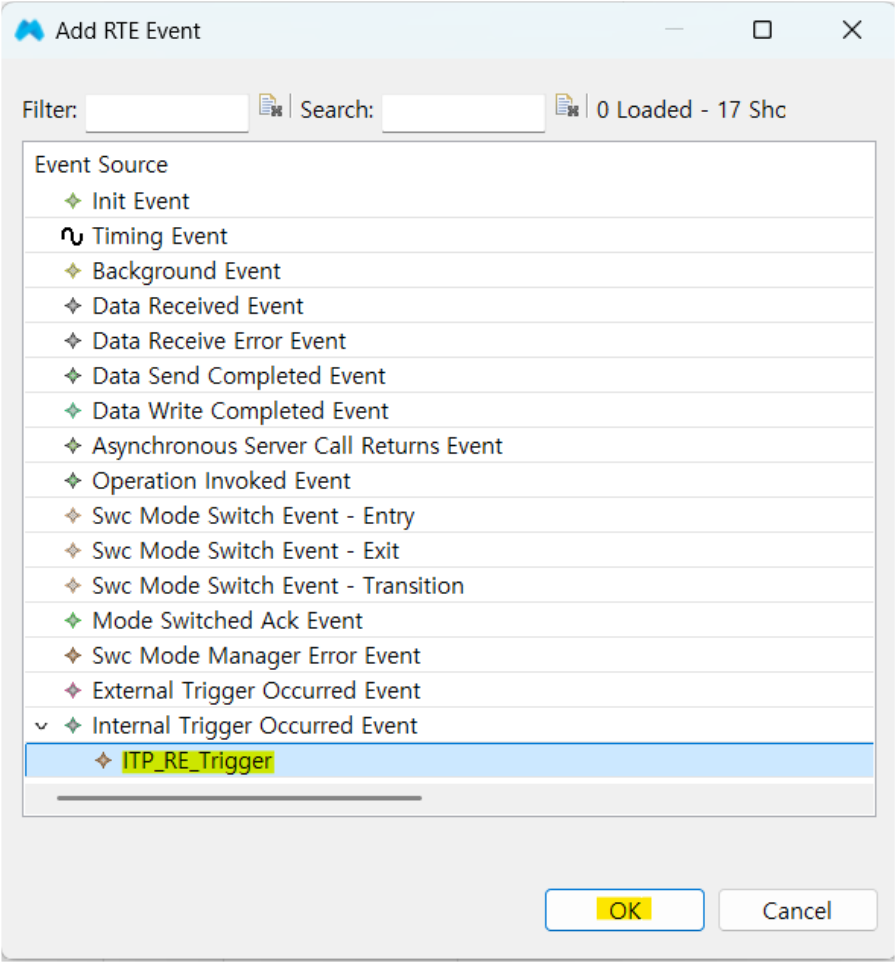

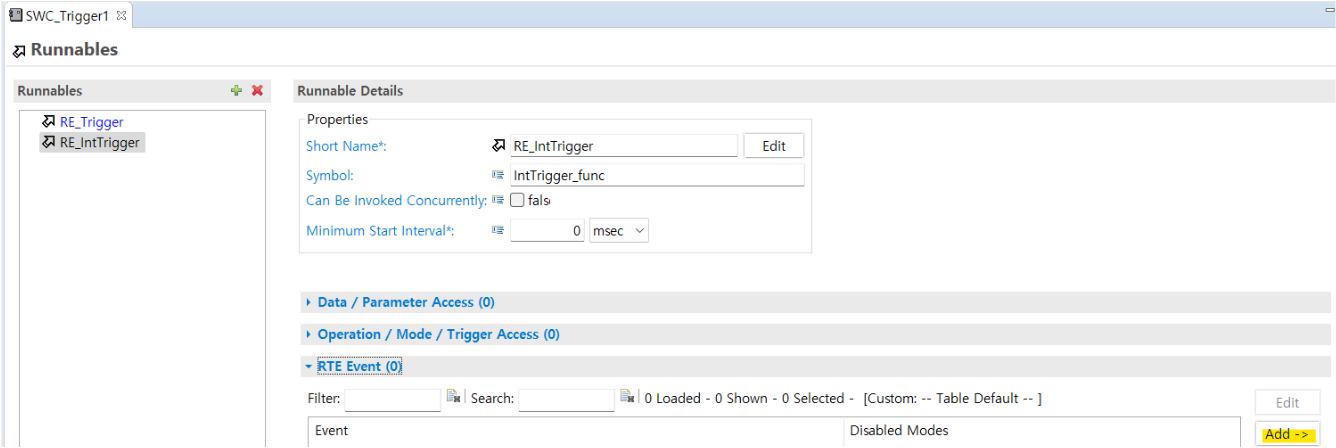

  • RTE Event → Add → Internal Trigger Occurred Event → ITP_RE_TriggerMain 선택 3-11 3-12

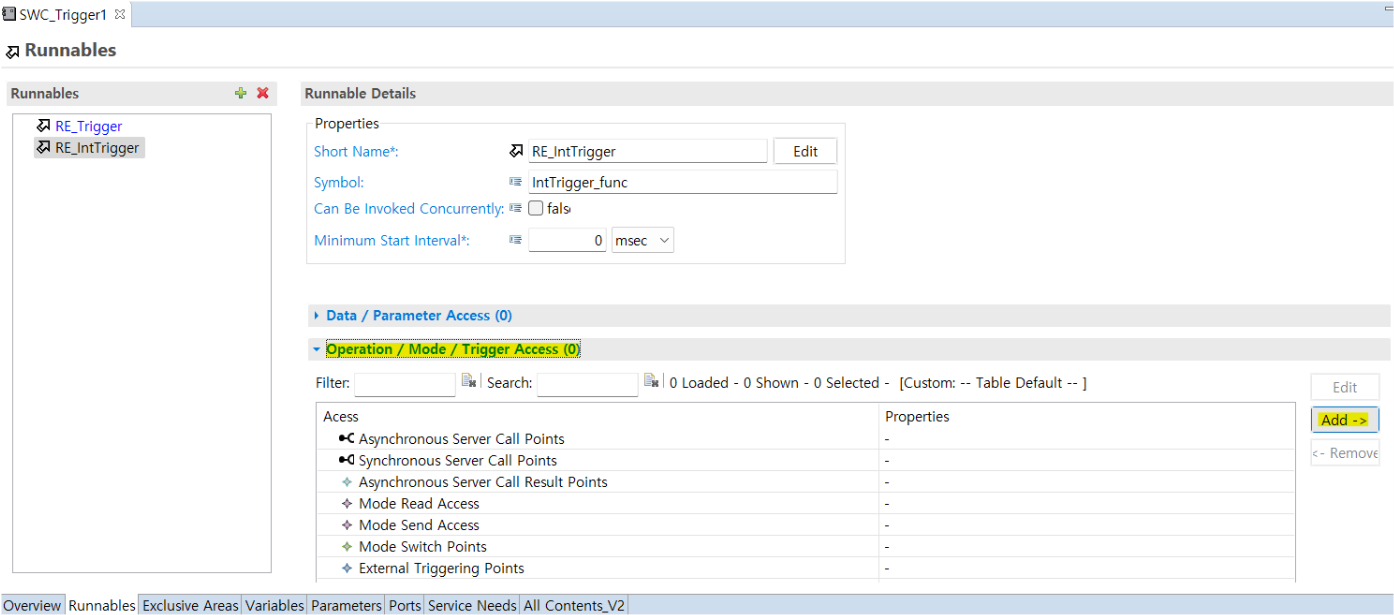

  • Operation/Mode/Trigger Access → Add → Synchronuous Server Call Points(SSCP)
    → R_LED01.WriteDirect 선택 3-13 3-14

Runnable 설정: SWC_Trigger2#

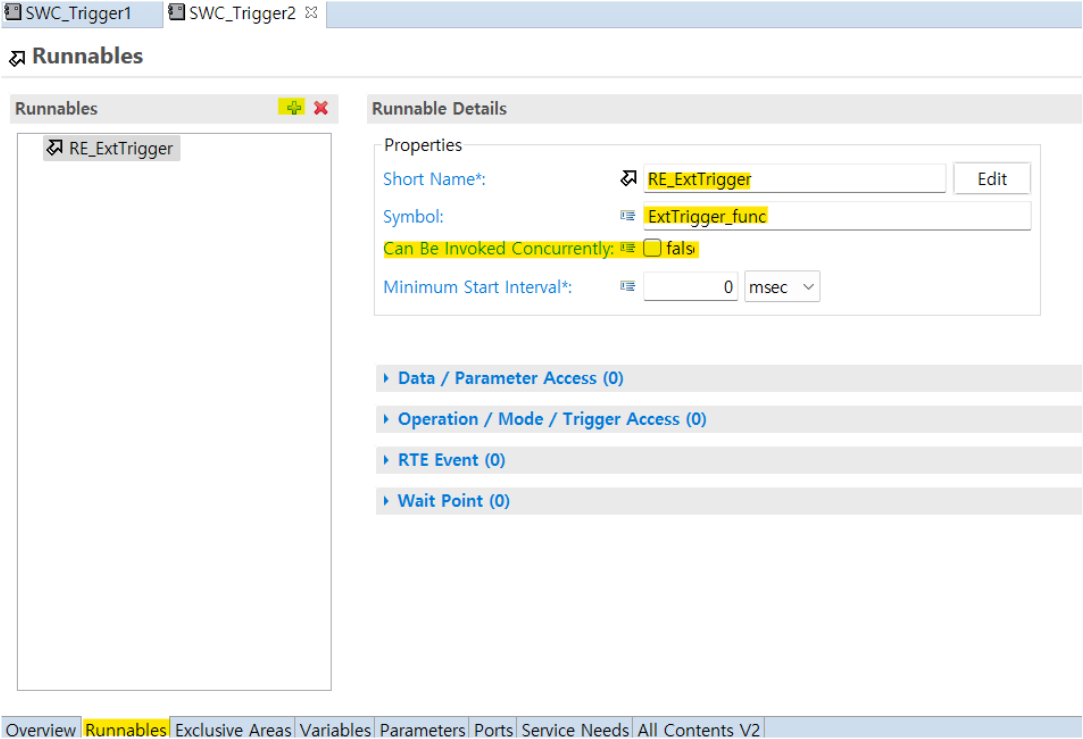

  • Runnables → + 클릭 → Short Name: RE_ExtTrigger → Symbol: ExtTrigger_func
    3-15

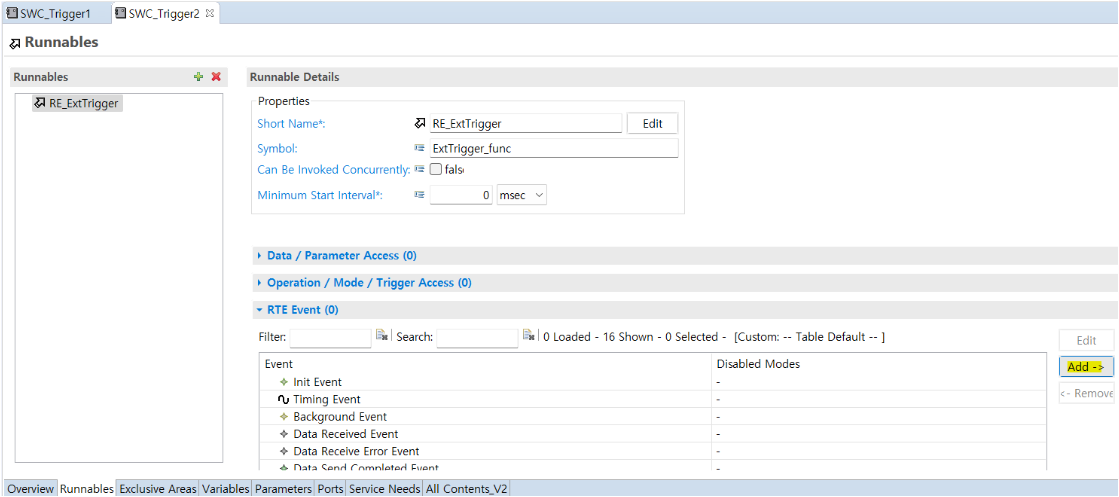

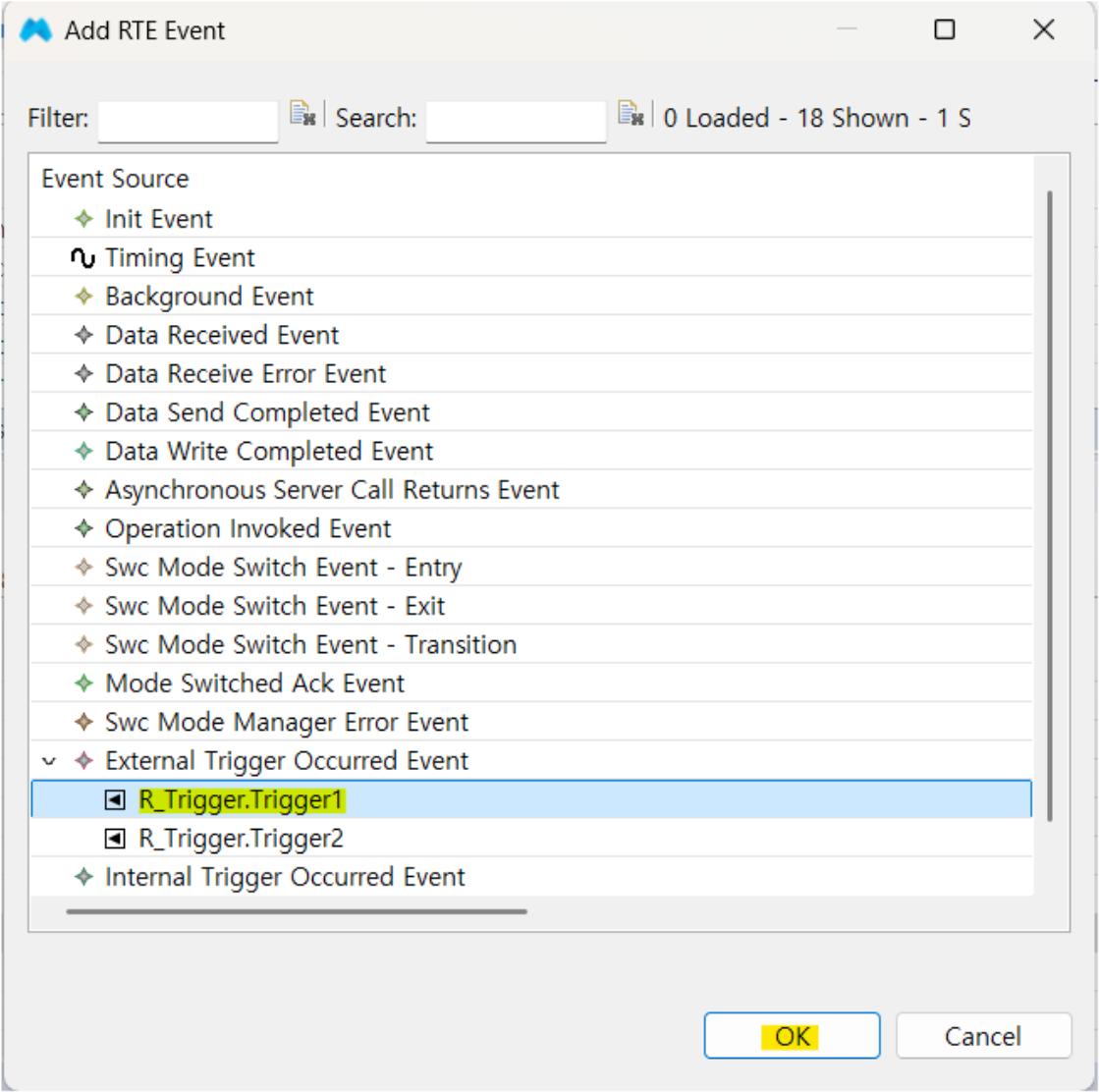

  • RTE Event → Add → External Trigger Occurred Event → R_Trigger.Trigger1 선택
    3-16
    3-17

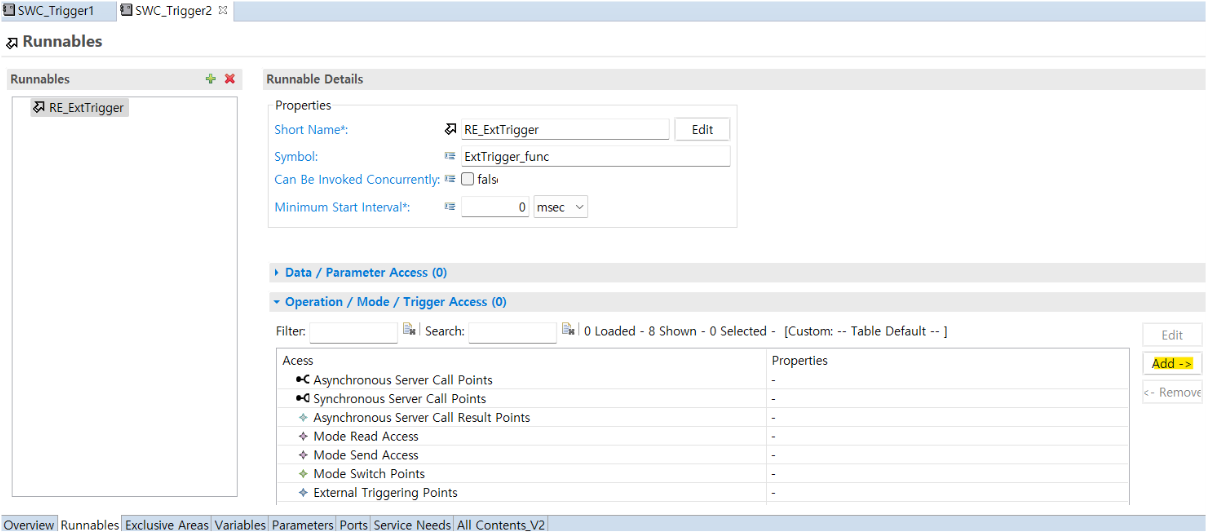

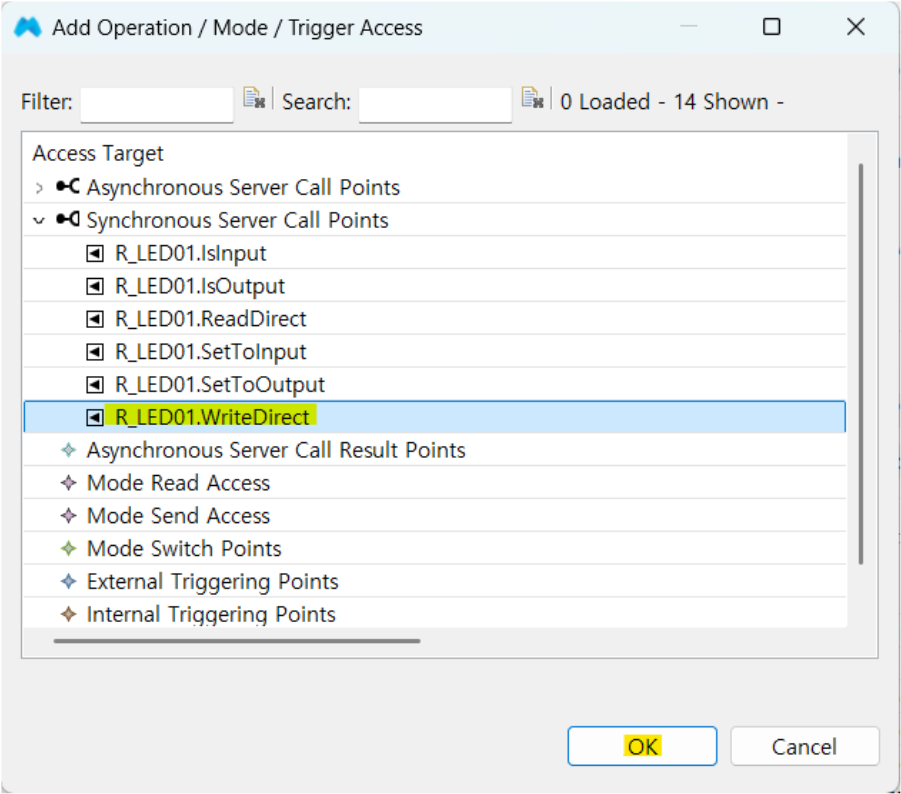

  • Operation/Mode/Trigger Access → Add → Synchronuous Server Call Points(SSCP)
    -> R_LED01.WriteDirect 선택 3-18
    3-19

4. C coding#

  • Static_Code → Reference_Code → src 우클릭 → New → File 선택 4-1

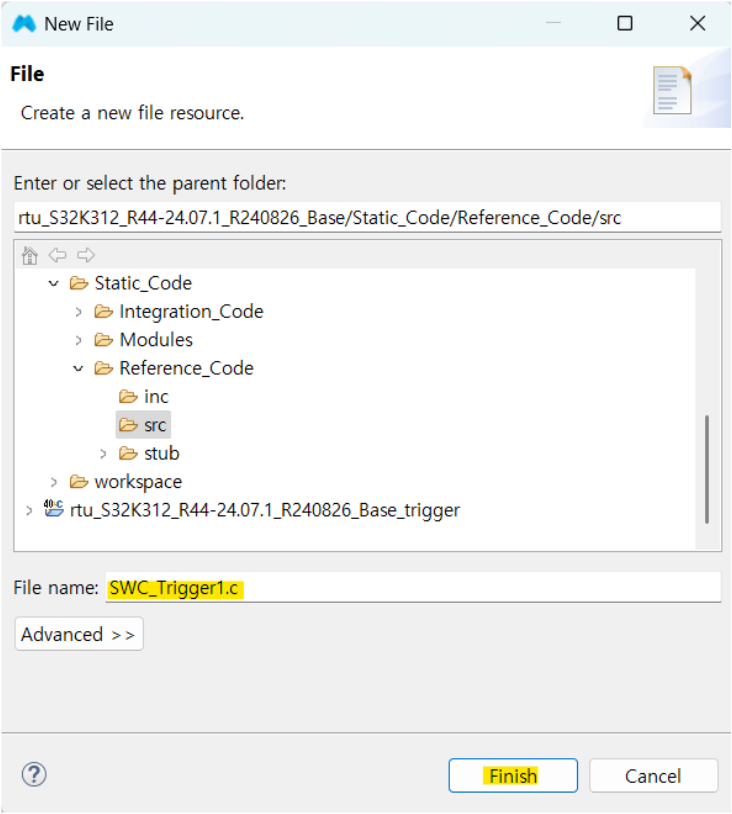

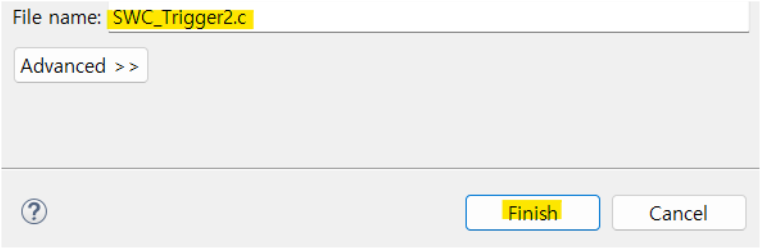

  • 파일명: SWC_Trigger1.c, SWC_Trigger2.c 생성
    4-2 4-3

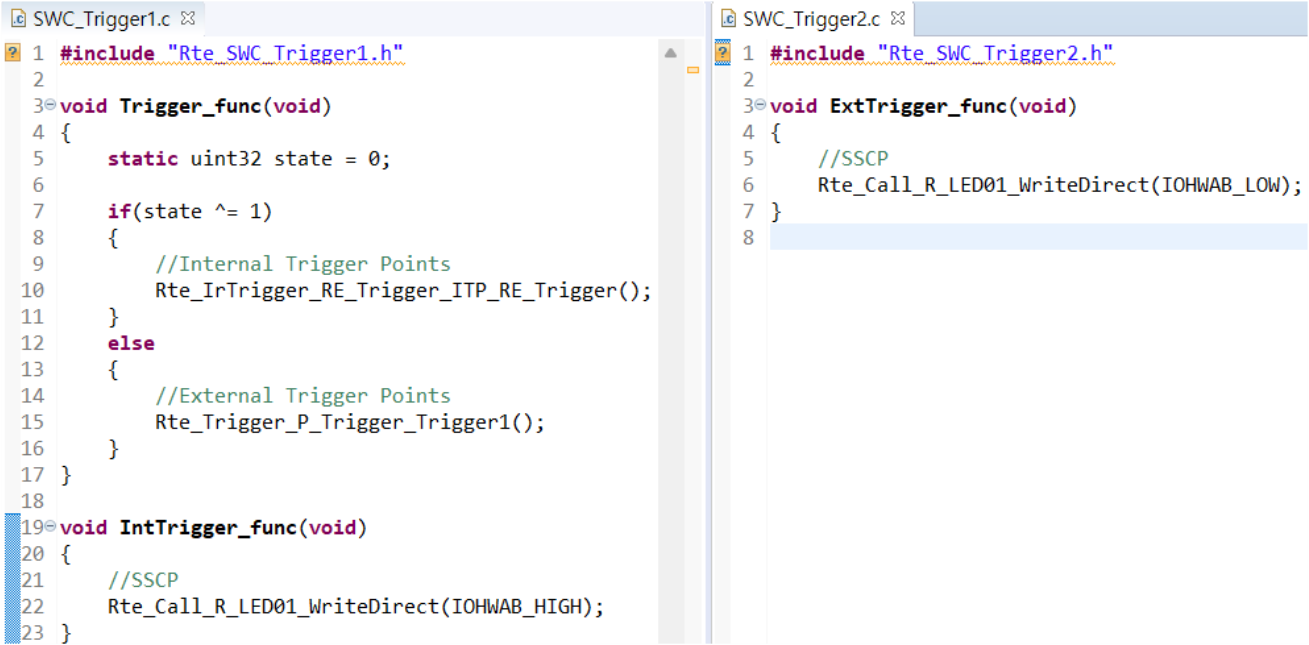

  • 각각 코드 작성 후 저장
    4-4

5. ECU Mapping#

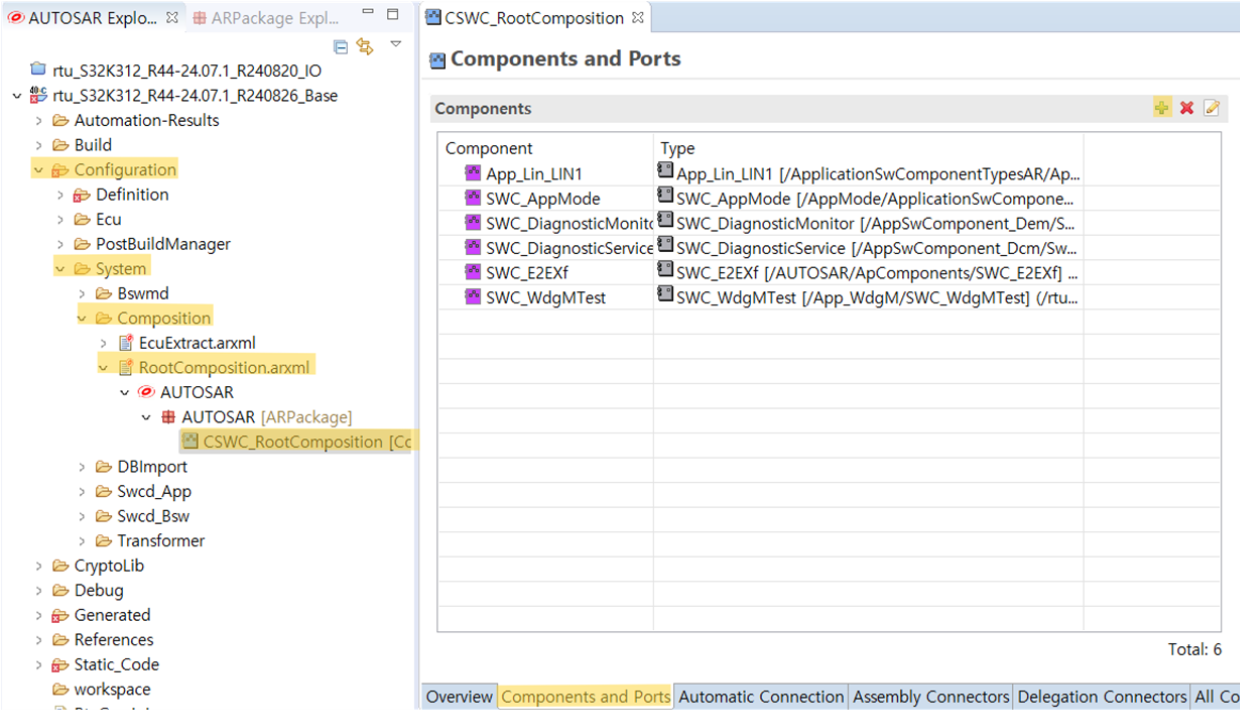

  • Configuration → System → Composition → RootComposition.arxml → AUTOSAR
    → CSWC_RootComposition [Composition] 더블클릭

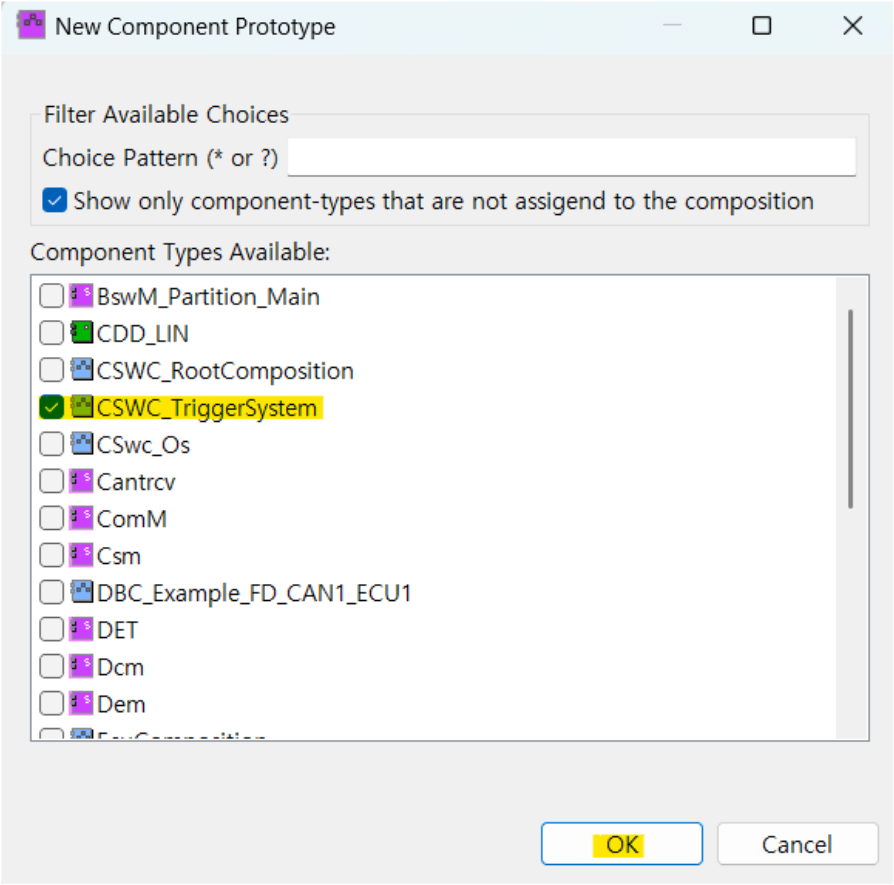

  • Components and Ports → + 클릭 → CSWC_TriggerSystem 선택
    5-1
    5-2

6. ECU Extract#

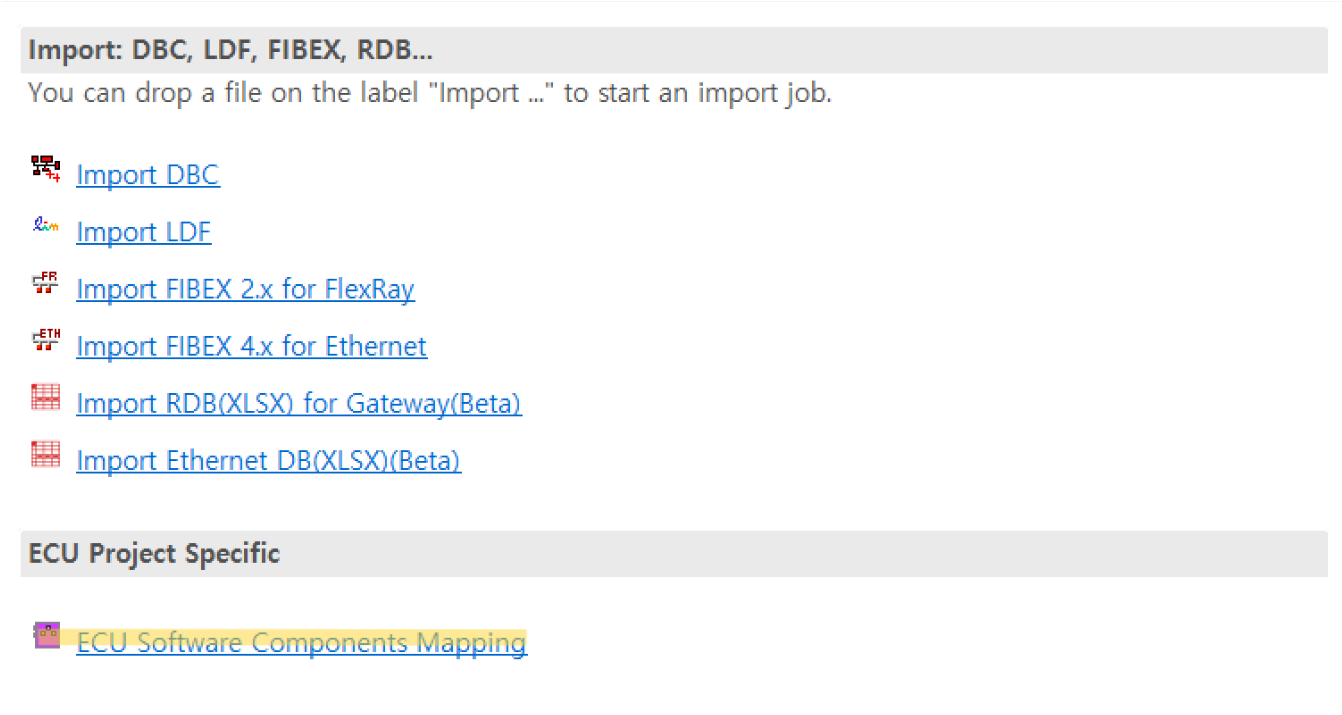

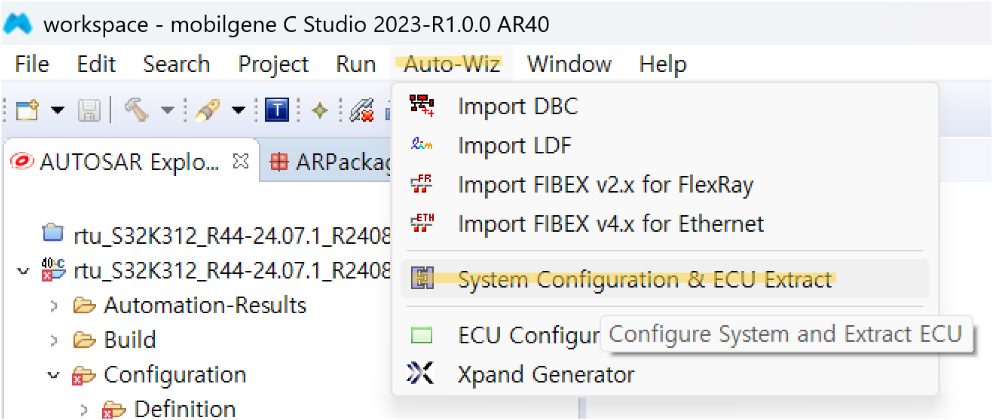

  • Auto-Wiz → System Configuration & ECU Extract 선택
    → ECU Software Components Mapping 클릭
    6-1
    6-2

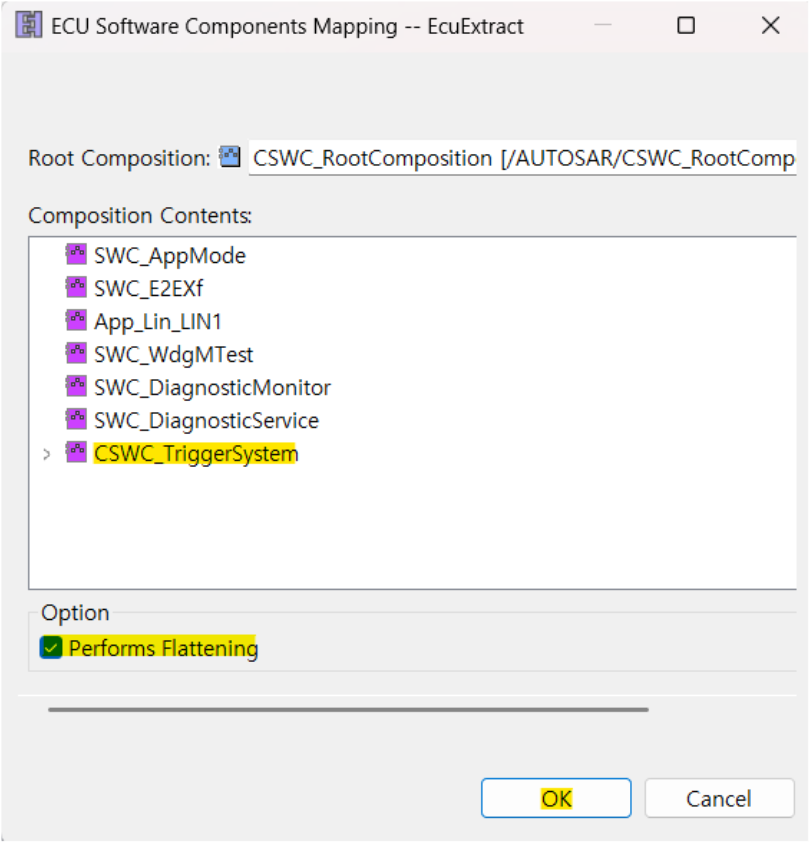

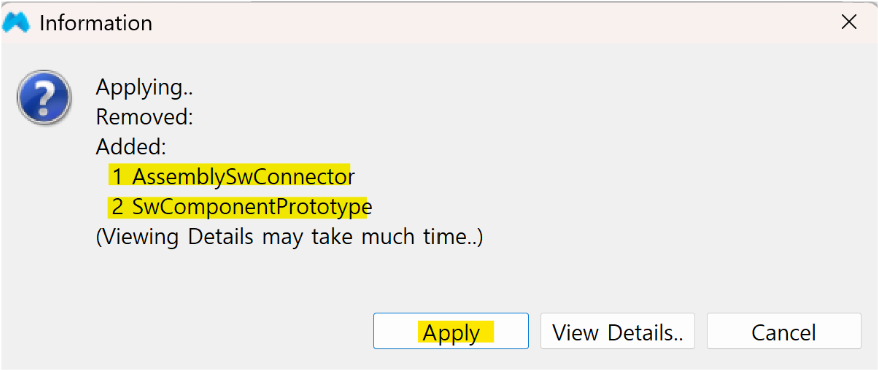

  • Performs Flattening 체크 → Apply 클릭
    6-3 6-4

7. ECU Configuration#

  • 우측 상단 초록 아이콘 클릭 → Generate ECU Configuration 선택
    7-1

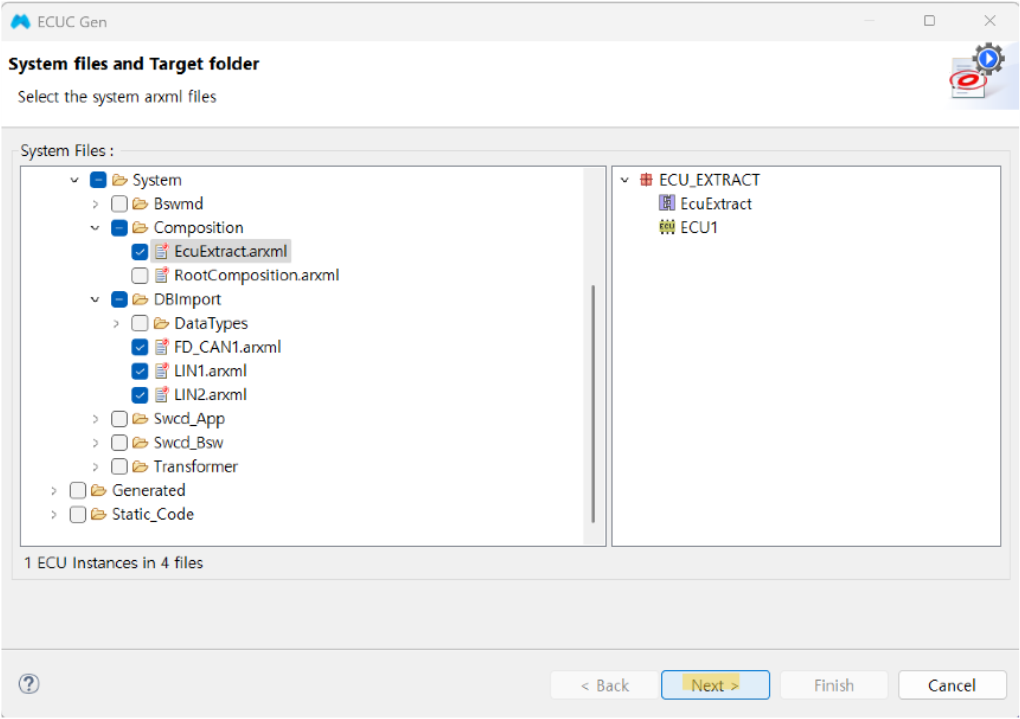

  • Next → Service → Rte 선택 → Next
    7-2
    7-3

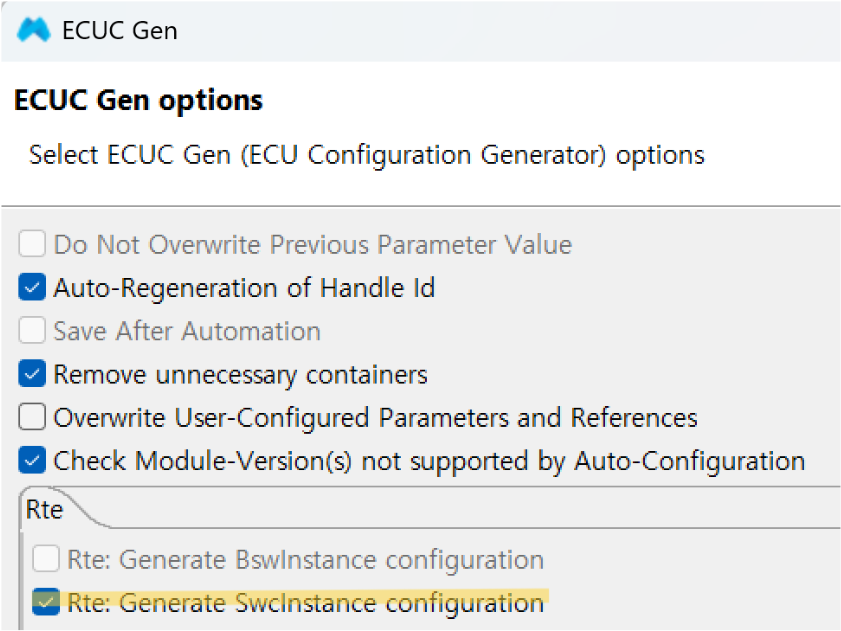

  • Rte: Generate SwcInstance Configuration 체크 → Finish 클릭
    7-4

Task Mapping#

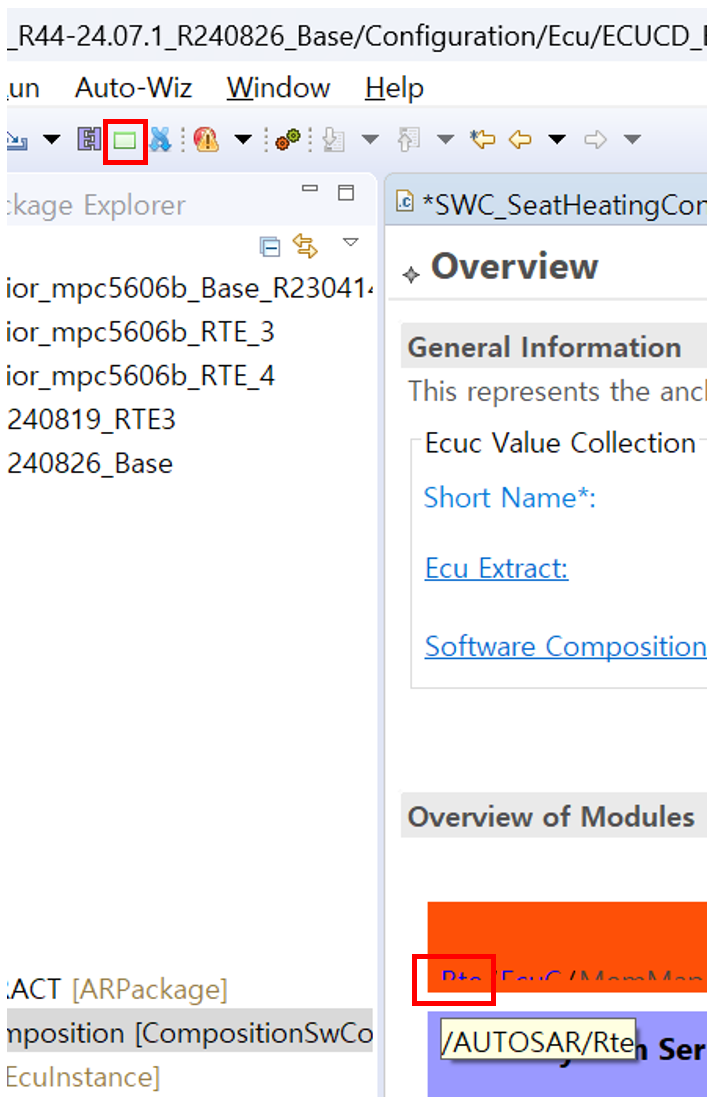

  • 우측 초록 아이콘 클릭 → Rte 선택
    7-5

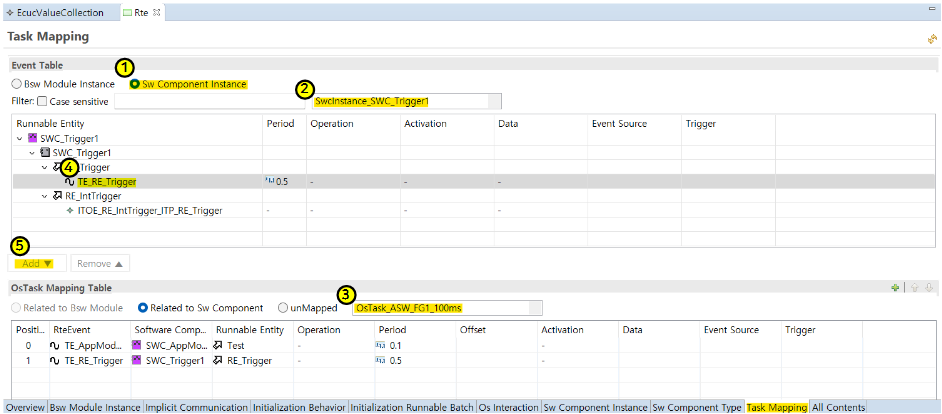

  • Task Mapping 탭 → SwcInstance_SWC_Trigger1 선택 → OsTask_ASW_FG1_100ms 선택 → TE_RE_Trigger 선택 후 Add
    7-6

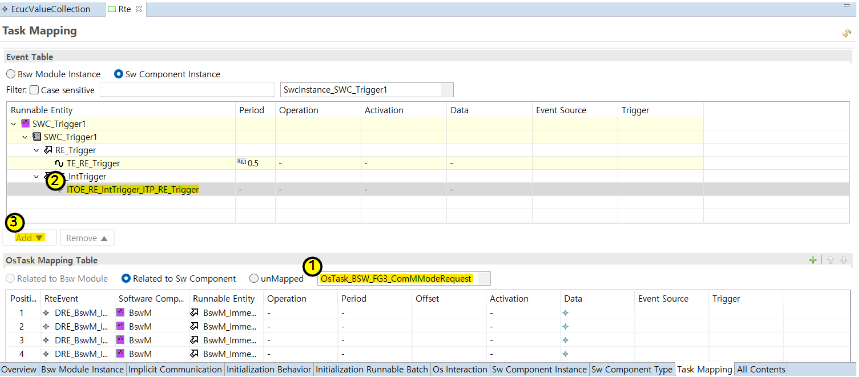

  • OsTask_BSW_FG3_ComMModeRequest 선택 → ITOE_RE_IntTrigger_ITP_RE_Trigger 선택 후 Add 7-7

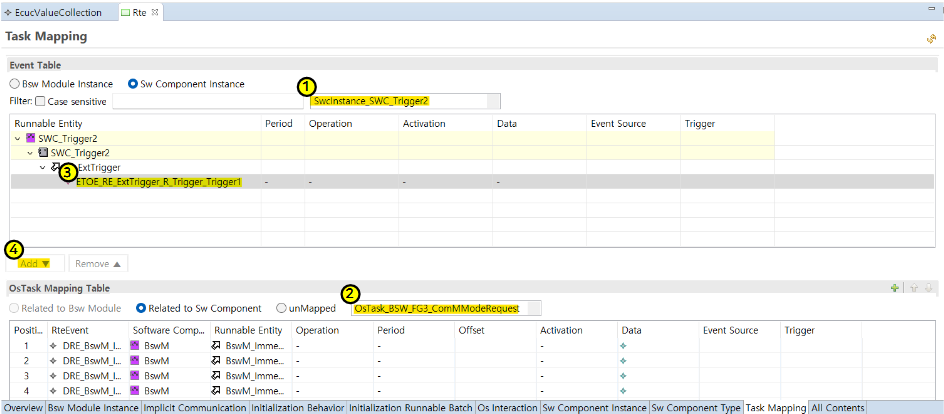

  • Task Mapping 탭 → SwcInstance_SWC_Trigger2 선택
    → OsTask_BSW_FG3_ComMModeRequest 선택 → ETOE_RE_ExtTrigger_R_Trigger_Trigger1 선택 후 Add
    7-8

External Trigger Source Reference 추가#

  • 우측 초록 아이콘 클릭 → Rte 선택
    7-5

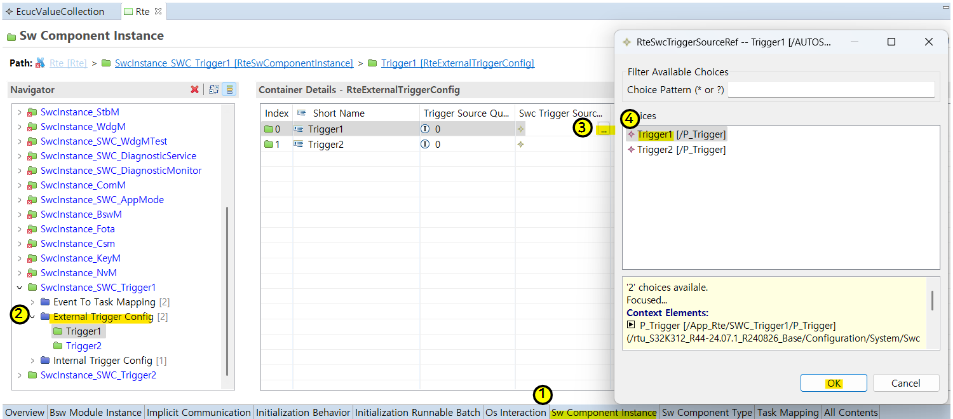

  • SW Component Instance 탭 → Navigator의 SwcInstance_SWC_Trigger1
    → External Trigger Config → Swc Trigger Source Ref 클릭 → Trigger1 선택
    → Trigger2도 동일하게 진행 7-9

스위치/LED 연결#

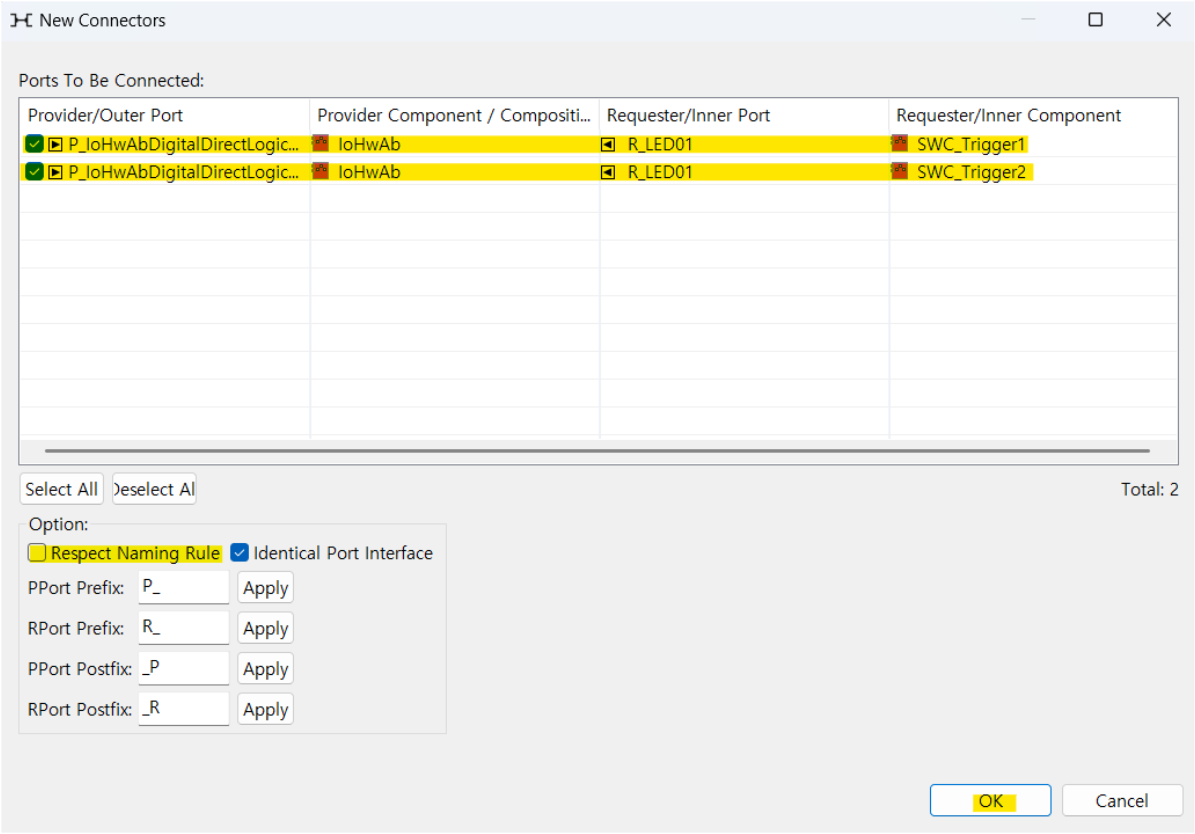

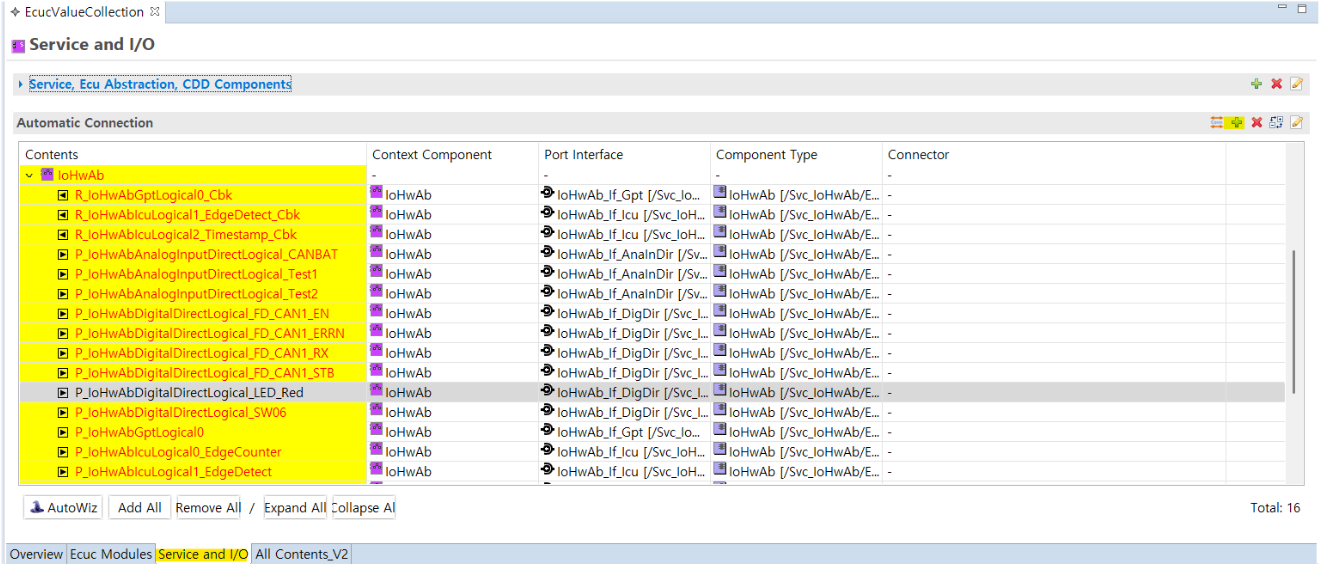

  • Service and I/O → P_IoHwAbDigitalDirectLogical_LED_Red 선택
    → Automatic Connection에서 + 클릭 → Respect Naming Rule 해제 → R_LED01 두 개 선택
    7-10 7-11

8. Generate & Build#

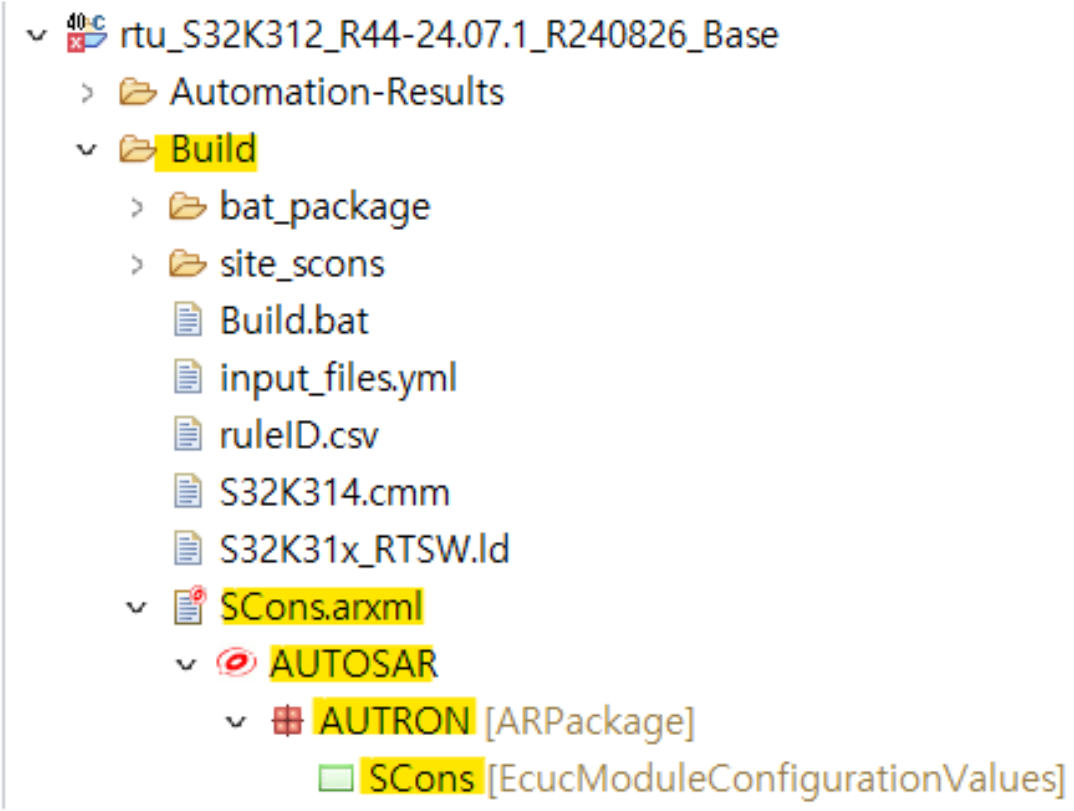

  • Build → Scons.arxml → AUTOSAR → AUTRON → SCons 더블클릭 → All Contents 클릭
    8-1

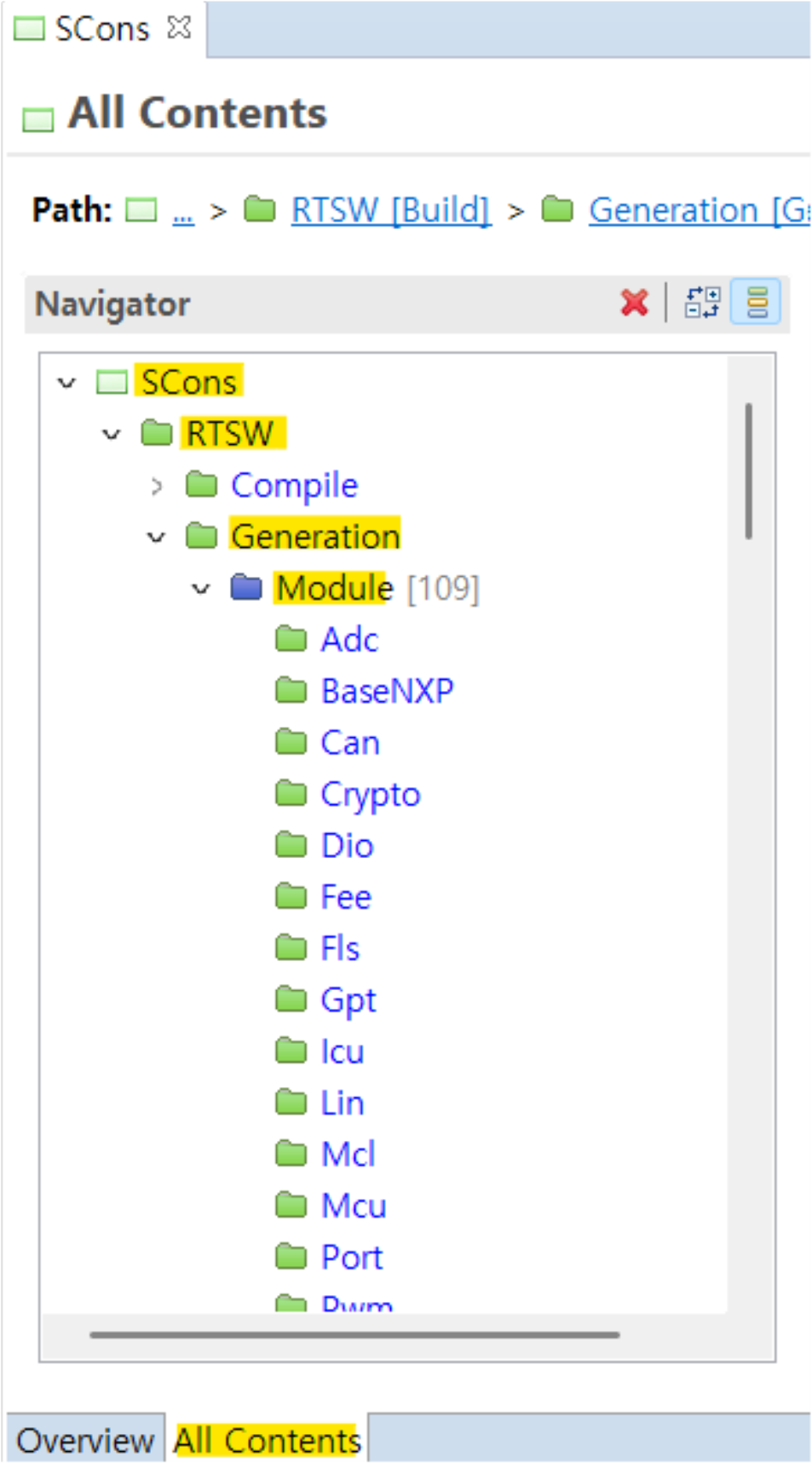

  • Navigator의 Scons → RTSW → Generation → Module 이동 → Rte 더블클릭
    8-2

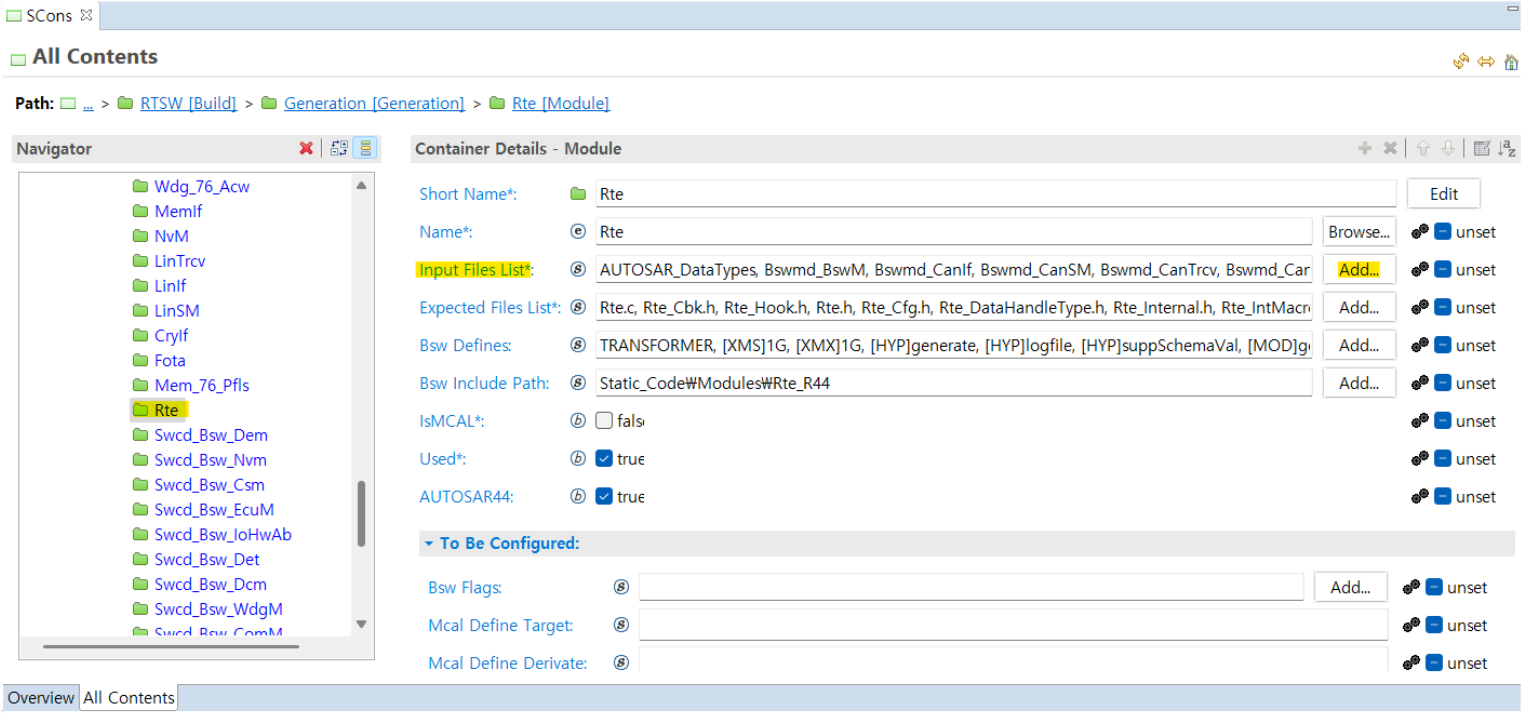

  • Input Files List → Add.. 클릭 8-3

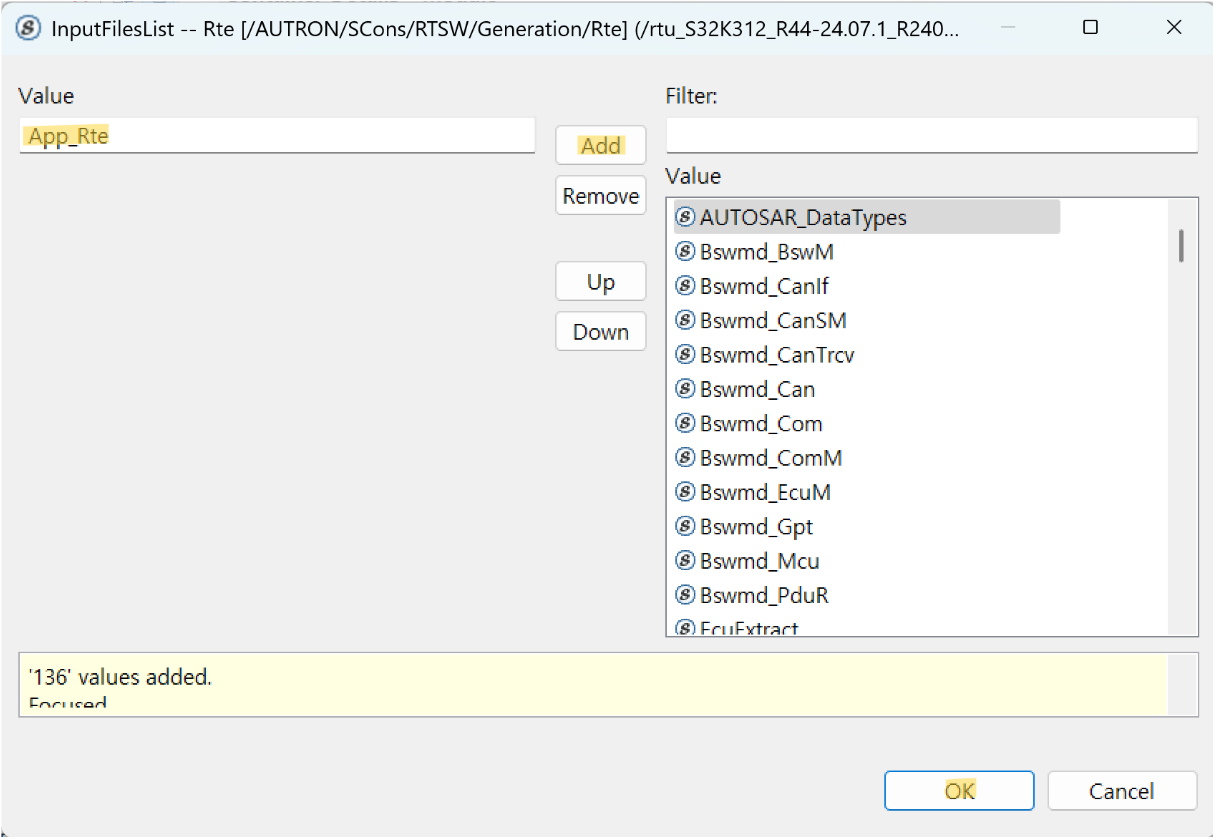

  • App_Rte 입력 후 Add 클릭 8-4

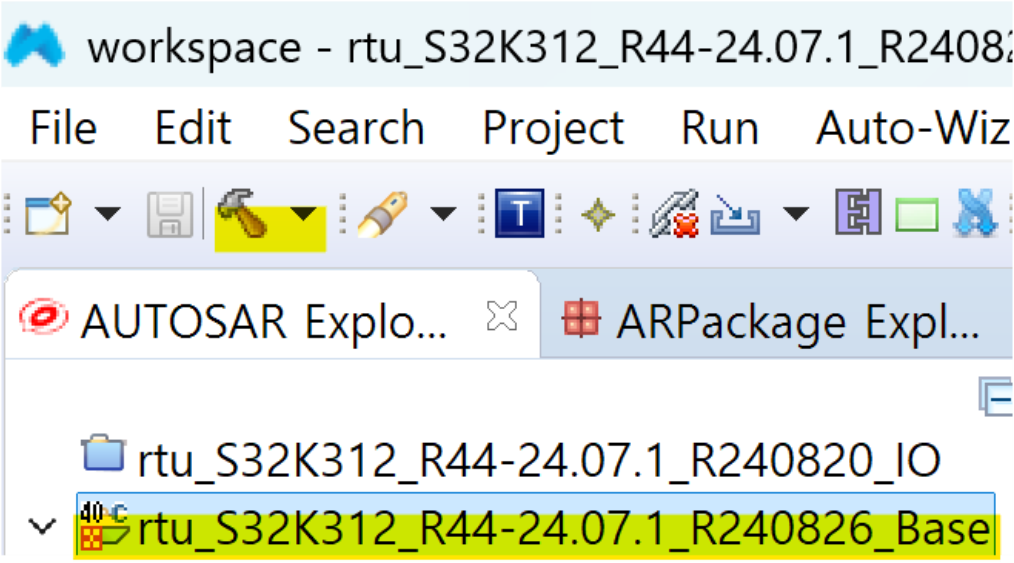

  • 화면 왼쪽 상단의 망치 버튼(Build) 누르기 8-5
